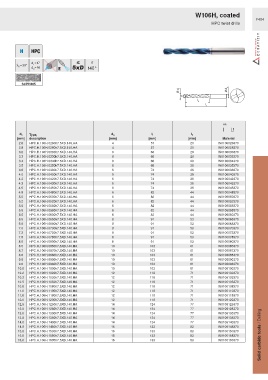

Page 1401 - Ceratizit Catalog

W106H, coated
F404
HPC twist drills

σ
140°

SCPH405
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
2.6 HPC.H.106H.0260h7.5XD.140.HA 4 57 21 W0106026370
2.8 HPC.H.106H.0280h7.5XD.140.HA 4 57 21 W0106028370
3.0 HPC.H.106H.0300h7.5XD.140.HA 6 66 28 W0106030370
3.3 HPC.H.106H.0330h7.5XD.140.HA 6 66 28 W0106033370
3.4 HPC.H.106H.0340h7.5XD.140.HA 6 66 28 W0106034370
3.5 HPC.H.106H.0350h7.5XD.140.HA 6 66 28 W0106035370
3.8 HPC.H.106H.0380h7.5XD.140.HA 6 74 36 W0106038370
4.0 HPC.H.106H.0400h7.5XD.140.HA 6 74 36 W0106040370
4.2 HPC.H.106H.0420h7.5XD.140.HA 6 74 36 W0106042370
4.3 HPC.H.106H.0430h7.5XD.140.HA 6 74 36 W0106043370
4.5 HPC.H.106H.0450h7.5XD.140.HA 6 74 36 W0106045370
4.8 HPC.H.106H.0480h7.5XD.140.HA 6 82 44 W0106048370
5.0 HPC.H.106H.0500h7.5XD.140.HA 6 82 44 W0106050370
5.2 HPC.H.106H.0520h7.5XD.140.HA 6 82 44 W0106052370
5.5 HPC.H.106H.0550h7.5XD.140.HA 6 82 44 W0106055370
5.8 HPC.H.106H.0580h7.5XD.140.HA 6 82 44 W0106058370
6.0 HPC.H.106H.0600h7.5XD.140.HA 6 82 44 W0106060370
6.5 HPC.H.106H.0650h7.5XD.140.HA 8 91 53 W0106065370
6.8 HPC.H.106H.0680h7.5XD.140.HA 8 91 53 W0106068370
7.0 HPC.H.106H.0700h7.5XD.140.HA 8 91 53 W0106070370
7.2 HPC.H.106H.0720h7.5XD.140.HA 8 91 53 W0106072370
7.8 HPC.H.106H.0780h7.5XD.140.HA 8 91 53 W0106078370
8.0 HPC.H.106H.0800h7.5XD.140.HA 8 91 53 W0106080370
8.5 HPC.H.106H.0850h7.5XD.140.HA 10 103 61 W0106085370
8.7 HPC.H.106H.0870h7.5XD.140.HA 10 103 61 W0106087370
8.8 HPC.H.106H.0880h7.5XD.140.HA 10 103 61 W0106088370
9.0 HPC.H.106H.0900h7.5XD.140.HA 10 103 61 W0106090370
9.8 HPC.H.106H.0980h7.5XD.140.HA 10 103 61 W0106098370
10.0 HPC.H.106H.1000h7.5XD.140.HA 10 103 61 W0106100370
10.2 HPC.H.106H.1020h7.5XD.140.HA 12 118 71 W0106102370
10.3 HPC.H.106H.1030h7.5XD.140.HA 12 118 71 W0106103370
10.5 HPC.H.106H.1050h7.5XD.140.HA 12 118 71 W0106105370
10.8 HPC.H.106H.1080h7.5XD.140.HA 12 118 71 W0106108370
11.0 HPC.H.106H.1100h7.5XD.140.HA 12 118 71 W0106110370
11.8 HPC.H.106H.1180h7.5XD.140.HA 12 118 71 W0106118370
12.0 HPC.H.106H.1200h7.5XD.140.HA 12 118 71 W0106120370
12.5 HPC.H.106H.1250h7.5XD.140.HA 14 124 77 W0106125370
12.8 HPC.H.106H.1280h7.5XD.140.HA 14 124 77 W0106128370
Solid carbide tools / Drilling
13.0 HPC.H.106H.1300h7.5XD.140.HA 14 124 77 W0106130370
13.8 HPC.H.106H.1380h7.5XD.140.HA 14 124 77 W0106138370
14.0 HPC.H.106H.1400h7.5XD.140.HA 14 124 77 W0106140370
14.8 HPC.H.106H.1480h7.5XD.140.HA 16 133 83 W0106148370
15.0 HPC.H.106H.1500h7.5XD.140.HA 16 133 83 W0106150370
15.8 HPC.H.106H.1580h7.5XD.140.HA 16 133 83 W0106158370
16.0 HPC.H.106H.1600h7.5XD.140.HA 16 133 83 W0106160370
