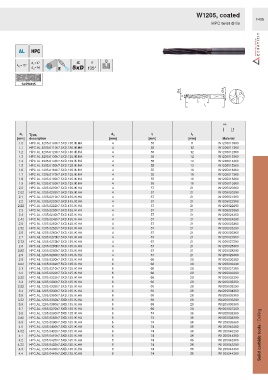

Page 1403 - Ceratizit Catalog

W1205, coated
F406
HPC twist drills

σ
135°

SCPN435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
1.0 HPC.AL.1205.0100h7.5XD.135.IK.HA 4 55 8 W1205010360
1.1 HPC.AL.1205.0110h7.5XD.135.IK.HA 4 55 12 W1205011360
1.2 HPC.AL.1205.0120h7.5XD.135.IK.HA 4 55 12 W1205012360
1.3 HPC.AL.1205.0130h7.5XD.135.IK.HA 4 55 12 W1205013360
1.4 HPC.AL.1205.0140h7.5XD.135.IK.HA 4 55 12 W1205014360
1.5 HPC.AL.1205.0150h7.5XD.135.IK.HA 4 55 12 W1205015360
1.6 HPC.AL.1205.0160h7.5XD.135.IK.HA 4 55 16 W1205016360
1.7 HPC.AL.1205.0170h7.5XD.135.IK.HA 4 55 16 W1205017360
1.8 HPC.AL.1205.0180h7.5XD.135.IK.HA 4 55 16 W1205018360
1.9 HPC.AL.1205.0190h7.5XD.135.IK.HA 4 55 16 W1205019360
2.0 HPC.AL.1205.0200h7.5XD.135.IK.HA 4 57 21 W1205020360
2.02 HPC.AL.1205.0202h7.5XD.135.IK.HA 4 57 21 W1205020290
2.1 HPC.AL.1205.0210h7.5XD.135.IK.HA 4 57 21 W1205021360
2.2 HPC.AL.1205.0220h7.5XD.135.IK.HA 4 57 21 W1205022360
2.22 HPC.AL.1205.0222h7.5XD.135.IK.HA 4 57 21 W1205022290
2.3 HPC.AL.1205.0230h7.5XD.135.IK.HA 4 57 21 W1205023360
2.4 HPC.AL.1205.0240h7.5XD.135.IK.HA 4 57 21 W1205024360
2.42 HPC.AL.1205.0242h7.5XD.135.IK.HA 4 57 21 W1205024290
2.5 HPC.AL.1205.0250h7.5XD.135.IK.HA 4 57 21 W1205025360
2.52 HPC.AL.1205.0252h7.5XD.135.IK.HA 4 57 21 W1205025290
2.6 HPC.AL.1205.0260h7.5XD.135.IK.HA 4 57 21 W1205026360
2.7 HPC.AL.1205.0270h7.5XD.135.IK.HA 4 57 21 W1205027360
2.72 HPC.AL.1205.0272h7.5XD.135.IK.HA 4 57 21 W1205027290
2.8 HPC.AL.1205.0280h7.5XD.135.IK.HA 4 57 21 W1205028360
2.82 HPC.AL.1205.0282h7.5XD.135.IK.HA 4 57 21 W1205028290
2.9 HPC.AL.1205.0290h7.5XD.135.IK.HA 4 57 21 W1205029360
3.0 HPC.AL.1205.0300h7.5XD.135.IK.HA 6 66 28 W1205030360
3.02 HPC.AL.1205.0302h7.5XD.135.IK.HA 6 66 28 W1205030290
3.1 HPC.AL.1205.0310h7.5XD.135.IK.HA 6 66 28 W1205031360
3.2 HPC.AL.1205.0320h7.5XD.135.IK.HA 6 66 28 W1205032360
3.22 HPC.AL.1205.0322h7.5XD.135.IK.HA 6 66 28 W1205032290
3.3 HPC.AL.1205.0330h7.5XD.135.IK.HA 6 66 28 W1205033360
3.32 HPC.AL.1205.0332h7.5XD.135.IK.HA 6 66 28 W1205033290
3.4 HPC.AL.1205.0340h7.5XD.135.IK.HA 6 66 28 W1205034360
3.5 HPC.AL.1205.0350h7.5XD.135.IK.HA 6 66 28 W1205035360
3.52 HPC.AL.1205.0352h7.5XD.135.IK.HA 6 66 28 W1205035290
3.6 HPC.AL.1205.0360h7.5XD.135.IK.HA 6 66 28 W1205036360
3.7 HPC.AL.1205.0370h7.5XD.135.IK.HA 6 66 28 W1205037360
3.8 HPC.AL.1205.0380h7.5XD.135.IK.HA 6 74 36 W1205038360
3.82 HPC.AL.1205.0382h7.5XD.135.IK.HA 6 74 36 W1205038290
3.9 HPC.AL.1205.0390h7.5XD.135.IK.HA 6 74 36 W1205039360
4.0 HPC.AL.1205.0400h7.5XD.135.IK.HA 6 74 36 W1205040360
4.02 HPC.AL.1205.0402h7.5XD.135.IK.HA 6 74 36 W1205040290
4.1 HPC.AL.1205.0410h7.5XD.135.IK.HA 6 74 36 W1205041360 Solid carbide tools / Drilling
4.2 HPC.AL.1205.0420h7.5XD.135.IK.HA 6 74 36 W1205042360
4.22 HPC.AL.1205.0422h7.5XD.135.IK.HA 6 74 36 W1205042290
4.3 HPC.AL.1205.0430h7.5XD.135.IK.HA 6 74 36 W1205043360
4.4 HPC.AL.1205.0440h7.5XD.135.IK.HA 6 74 36 W1205044360
