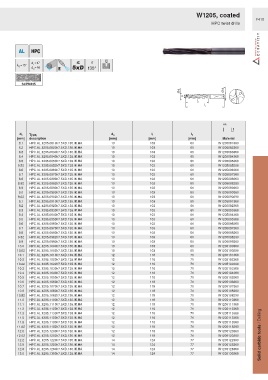

Page 1407 - Ceratizit Catalog

W1205, coated
F410
HPC twist drills

σ
135°

SCPN435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
8.1 HPC.AL.1205.0810h7.5XD.135.IK.HA 10 103 61 W1205081360
8.2 HPC.AL.1205.0820h7.5XD.135.IK.HA 10 103 61 W1205082360
8.3 HPC.AL.1205.0830h7.5XD.135.IK.HA 10 103 61 W1205083360
8.4 HPC.AL.1205.0840h7.5XD.135.IK.HA 10 103 61 W1205084360
8.5 HPC.AL.1205.0850h7.5XD.135.IK.HA 10 103 61 W1205085360
8.52 HPC.AL.1205.0852h7.5XD.135.IK.HA 10 103 61 W1205085290
8.6 HPC.AL.1205.0860h7.5XD.135.IK.HA 10 103 61 W1205086360
8.7 HPC.AL.1205.0870h7.5XD.135.IK.HA 10 103 61 W1205087360
8.8 HPC.AL.1205.0880h7.5XD.135.IK.HA 10 103 61 W1205088360
8.82 HPC.AL.1205.0882h7.5XD.135.IK.HA 10 103 61 W1205088290
8.9 HPC.AL.1205.0890h7.5XD.135.IK.HA 10 103 61 W1205089360
9.0 HPC.AL.1205.0900h7.5XD.135.IK.HA 10 103 61 W1205090360
9.02 HPC.AL.1205.0902h7.5XD.135.IK.HA 10 103 61 W1205090290
9.1 HPC.AL.1205.0910h7.5XD.135.IK.HA 10 103 61 W1205091360
9.2 HPC.AL.1205.0920h7.5XD.135.IK.HA 10 103 61 W1205092360
9.3 HPC.AL.1205.0930h7.5XD.135.IK.HA 10 103 61 W1205093360
9.4 HPC.AL.1205.0940h7.5XD.135.IK.HA 10 103 61 W1205094360
9.5 HPC.AL.1205.0950h7.5XD.135.IK.HA 10 103 61 W1205095360
9.6 HPC.AL.1205.0960h7.5XD.135.IK.HA 10 103 61 W1205096360
9.7 HPC.AL.1205.0970h7.5XD.135.IK.HA 10 103 61 W1205097360
9.8 HPC.AL.1205.0980h7.5XD.135.IK.HA 10 103 61 W1205098360
9.82 HPC.AL.1205.0982h7.5XD.135.IK.HA 10 103 61 W1205098290
9.9 HPC.AL.1205.0990h7.5XD.135.IK.HA 10 103 61 W1205099360
10.0 HPC.AL.1205.1000h7.5XD.135.IK.HA 10 103 61 W1205100360
10.02 HPC.AL.1205.1002h7.5XD.135.IK.HA 10 103 61 W1205100290
10.1 HPC.AL.1205.1010h7.5XD.135.IK.HA 12 118 71 W1205101360
10.2 HPC.AL.1205.1020h7.5XD.135.IK.HA 12 118 71 W1205102360
10.22 HPC.AL.1205.1022h7.5XD.135.IK.HA 12 118 71 W1205102290
10.3 HPC.AL.1205.1030h7.5XD.135.IK.HA 12 118 71 W1205103360
10.4 HPC.AL.1205.1040h7.5XD.135.IK.HA 12 118 71 W1205104360
10.5 HPC.AL.1205.1050h7.5XD.135.IK.HA 12 118 71 W1205105360
10.6 HPC.AL.1205.1060h7.5XD.135.IK.HA 12 118 71 W1205106360
10.7 HPC.AL.1205.1070h7.5XD.135.IK.HA 12 118 71 W1205107360
10.8 HPC.AL.1205.1080h7.5XD.135.IK.HA 12 118 71 W1205108360
10.82 HPC.AL.1205.1082h7.5XD.135.IK.HA 12 118 71 W1205108290
11.0 HPC.AL.1205.1100h7.5XD.135.IK.HA 12 118 71 W1205110360
11.1 HPC.AL.1205.1110h7.5XD.135.IK.HA 12 118 71 W1205111360
11.2 HPC.AL.1205.1120h7.5XD.135.IK.HA 12 118 71 W1205112360
11.3 HPC.AL.1205.1130h7.5XD.135.IK.HA 12 118 71 W1205113360
11.5 HPC.AL.1205.1150h7.5XD.135.IK.HA 12 118 71 W1205115360
11.8 HPC.AL.1205.1180h7.5XD.135.IK.HA 12 118 71 W1205118360
11.82 HPC.AL.1205.1182h7.5XD.135.IK.HA 12 118 71 W1205118290
12.0 HPC.AL.1205.1200h7.5XD.135.IK.HA 12 118 71 W1205120360
12.02 HPC.AL.1205.1202h7.5XD.135.IK.HA 12 118 71 W1205120290 Solid carbide tools / Drilling
12.2 HPC.AL.1205.1220h7.5XD.135.IK.HA 14 124 77 W1205122360
12.5 HPC.AL.1205.1250h7.5XD.135.IK.HA 14 124 77 W1205125360
12.8 HPC.AL.1205.1280h7.5XD.135.IK.HA 14 124 77 W1205128360
13.0 HPC.AL.1205.1300h7.5XD.135.IK.HA 14 124 77 W1205130360
