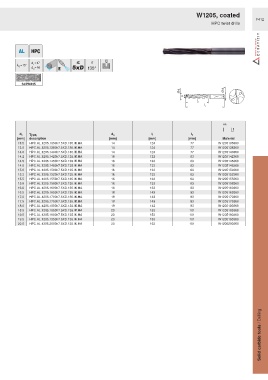

Page 1409 - Ceratizit Catalog

W1205, coated
F412
HPC twist drills

σ
135°

SCPN435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
13.5 HPC.AL.1205.1350h7.5XD.135.IK.HA 14 124 77 W1205135360
13.8 HPC.AL.1205.1380h7.5XD.135.IK.HA 14 124 77 W1205138360
14.0 HPC.AL.1205.1400h7.5XD.135.IK.HA 14 124 77 W1205140360
14.2 HPC.AL.1205.1420h7.5XD.135.IK.HA 16 133 83 W1205142360
14.5 HPC.AL.1205.1450h7.5XD.135.IK.HA 16 133 83 W1205145360
14.8 HPC.AL.1205.1480h7.5XD.135.IK.HA 16 133 83 W1205148360
15.0 HPC.AL.1205.1500h7.5XD.135.IK.HA 16 133 83 W1205150360
15.2 HPC.AL.1205.1520h7.5XD.135.IK.HA 16 133 83 W1205152360
15.5 HPC.AL.1205.1550h7.5XD.135.IK.HA 16 133 83 W1205155360
15.8 HPC.AL.1205.1580h7.5XD.135.IK.HA 16 133 83 W1205158360
16.0 HPC.AL.1205.1600h7.5XD.135.IK.HA 16 133 83 W1205160360
16.5 HPC.AL.1205.1650h7.5XD.135.IK.HA 18 143 93 W1205165360
17.0 HPC.AL.1205.1700h7.5XD.135.IK.HA 18 143 93 W1205170360
17.5 HPC.AL.1205.1750h7.5XD.135.IK.HA 18 143 93 W1205175360
18.0 HPC.AL.1205.1800h7.5XD.135.IK.HA 18 143 93 W1205180360
18.5 HPC.AL.1205.1850h7.5XD.135.IK.HA 20 153 101 W1205185360
19.0 HPC.AL.1205.1900h7.5XD.135.IK.HA 20 153 101 W1205190360
19.5 HPC.AL.1205.1950h7.5XD.135.IK.HA 20 153 101 W1205195360
20.0 HPC.AL.1205.2000h7.5XD.135.IK.HA 20 153 101 W1205200360

Solid carbide tools / Drilling
