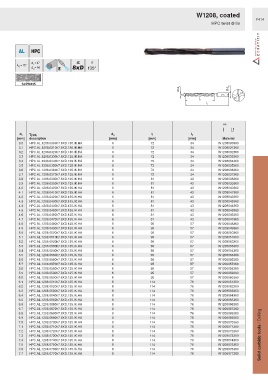

Page 1411 - Ceratizit Catalog

W1208, coated
F414
HPC twist drills

σ
135°

SCPN435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HPC.AL.1208.0300h7.8XD.135.IK.HA 6 72 34 W1208030360
3.1 HPC.AL.1208.0310h7.8XD.135.IK.HA 6 72 34 W1208031360
3.2 HPC.AL.1208.0320h7.8XD.135.IK.HA 6 72 34 W1208032360
3.3 HPC.AL.1208.0330h7.8XD.135.IK.HA 6 72 34 W1208033360
3.4 HPC.AL.1208.0340h7.8XD.135.IK.HA 6 72 34 W1208034360
3.5 HPC.AL.1208.0350h7.8XD.135.IK.HA 6 72 34 W1208035360
3.6 HPC.AL.1208.0360h7.8XD.135.IK.HA 6 72 34 W1208036360
3.7 HPC.AL.1208.0370h7.8XD.135.IK.HA 6 72 34 W1208037360
3.8 HPC.AL.1208.0380h7.8XD.135.IK.HA 6 81 43 W1208038360
3.9 HPC.AL.1208.0390h7.8XD.135.IK.HA 6 81 43 W1208039360
4.0 HPC.AL.1208.0400h7.8XD.135.IK.HA 6 81 43 W1208040360
4.1 HPC.AL.1208.0410h7.8XD.135.IK.HA 6 81 43 W1208041360
4.2 HPC.AL.1208.0420h7.8XD.135.IK.HA 6 81 43 W1208042360
4.3 HPC.AL.1208.0430h7.8XD.135.IK.HA 6 81 43 W1208043360
4.4 HPC.AL.1208.0440h7.8XD.135.IK.HA 6 81 43 W1208044360
4.5 HPC.AL.1208.0450h7.8XD.135.IK.HA 6 81 43 W1208045360
4.6 HPC.AL.1208.0460h7.8XD.135.IK.HA 6 81 43 W1208046360
4.7 HPC.AL.1208.0470h7.8XD.135.IK.HA 6 81 43 W1208047360
4.8 HPC.AL.1208.0480h7.8XD.135.IK.HA 6 95 57 W1208048360
4.9 HPC.AL.1208.0490h7.8XD.135.IK.HA 6 95 57 W1208049360
5.0 HPC.AL.1208.0500h7.8XD.135.IK.HA 6 95 57 W1208050360
5.1 HPC.AL.1208.0510h7.8XD.135.IK.HA 6 95 57 W1208051360
5.2 HPC.AL.1208.0520h7.8XD.135.IK.HA 6 95 57 W1208052360
5.3 HPC.AL.1208.0530h7.8XD.135.IK.HA 6 95 57 W1208053360
5.4 HPC.AL.1208.0540h7.8XD.135.IK.HA 6 95 57 W1208054360
5.5 HPC.AL.1208.0550h7.8XD.135.IK.HA 6 95 57 W1208055360
5.6 HPC.AL.1208.0560h7.8XD.135.IK.HA 6 95 57 W1208056360
5.7 HPC.AL.1208.0570h7.8XD.135.IK.HA 6 95 57 W1208057360
5.8 HPC.AL.1208.0580h7.8XD.135.IK.HA 6 95 57 W1208058360
5.9 HPC.AL.1208.0590h7.8XD.135.IK.HA 6 95 57 W1208059360
6.0 HPC.AL.1208.0600h7.8XD.135.IK.HA 6 95 57 W1208060360
6.1 HPC.AL.1208.0610h7.8XD.135.IK.HA 8 114 76 W1208061360
6.2 HPC.AL.1208.0620h7.8XD.135.IK.HA 8 114 76 W1208062360
6.3 HPC.AL.1208.0630h7.8XD.135.IK.HA 8 114 76 W1208063360
6.4 HPC.AL.1208.0640h7.8XD.135.IK.HA 8 114 76 W1208064360
6.5 HPC.AL.1208.0650h7.8XD.135.IK.HA 8 114 76 W1208065360
6.6 HPC.AL.1208.0660h7.8XD.135.IK.HA 8 114 76 W1208066360
6.7 HPC.AL.1208.0670h7.8XD.135.IK.HA 8 114 76 W1208067360
6.8 HPC.AL.1208.0680h7.8XD.135.IK.HA 8 114 76 W1208068360
6.9 HPC.AL.1208.0690h7.8XD.135.IK.HA 8 114 76 W1208069360
7.0 HPC.AL.1208.0700h7.8XD.135.IK.HA 8 114 76 W1208070360
7.1 HPC.AL.1208.0710h7.8XD.135.IK.HA 8 114 76 W1208071360
7.2 HPC.AL.1208.0720h7.8XD.135.IK.HA 8 114 76 W1208072360
7.3 HPC.AL.1208.0730h7.8XD.135.IK.HA 8 114 76 W1208073360 Solid carbide tools / Drilling
7.4 HPC.AL.1208.0740h7.8XD.135.IK.HA 8 114 76 W1208074360
7.5 HPC.AL.1208.0750h7.8XD.135.IK.HA 8 114 76 W1208075360
7.6 HPC.AL.1208.0760h7.8XD.135.IK.HA 8 114 76 W1208076360
7.7 HPC.AL.1208.0770h7.8XD.135.IK.HA 8 114 76 W1208077360
