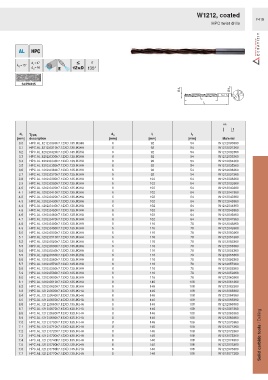

Page 1415 - Ceratizit Catalog

W1212, coated
F418
HPC twist drills

σ
135°

SCPN435
Ø d 1 Ø d A

l 2
l 1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HPC.AL.1212.0300h7.12XD.135.IK.HA 6 92 54 W1212030360
3.1 HPC.AL.1212.0310h7.12XD.135.IK.HA 6 92 54 W1212031360
3.2 HPC.AL.1212.0320h7.12XD.135.IK.HA 6 92 54 W1212032360
3.3 HPC.AL.1212.0330h7.12XD.135.IK.HA 6 92 54 W1212033360
3.4 HPC.AL.1212.0340h7.12XD.135.IK.HA 6 92 54 W1212034360
3.5 HPC.AL.1212.0350h7.12XD.135.IK.HA 6 92 54 W1212035360
3.6 HPC.AL.1212.0360h7.12XD.135.IK.HA 6 92 54 W1212036360
3.7 HPC.AL.1212.0370h7.12XD.135.IK.HA 6 92 54 W1212037360
3.8 HPC.AL.1212.0380h7.12XD.135.IK.HA 6 102 64 W1212038360
3.9 HPC.AL.1212.0390h7.12XD.135.IK.HA 6 102 64 W1212039360
4.0 HPC.AL.1212.0400h7.12XD.135.IK.HA 6 102 64 W1212040360
4.1 HPC.AL.1212.0410h7.12XD.135.IK.HA 6 102 64 W1212041360
4.2 HPC.AL.1212.0420h7.12XD.135.IK.HA 6 102 64 W1212042360
4.3 HPC.AL.1212.0430h7.12XD.135.IK.HA 6 102 64 W1212043360
4.4 HPC.AL.1212.0440h7.12XD.135.IK.HA 6 102 64 W1212044360
4.5 HPC.AL.1212.0450h7.12XD.135.IK.HA 6 102 64 W1212045360
4.6 HPC.AL.1212.0460h7.12XD.135.IK.HA 6 102 64 W1212046360
4.7 HPC.AL.1212.0470h7.12XD.135.IK.HA 6 102 64 W1212047360
4.8 HPC.AL.1212.0480h7.12XD.135.IK.HA 6 116 78 W1212048360
4.9 HPC.AL.1212.0490h7.12XD.135.IK.HA 6 116 78 W1212049360
5.0 HPC.AL.1212.0500h7.12XD.135.IK.HA 6 116 78 W1212050360
5.1 HPC.AL.1212.0510h7.12XD.135.IK.HA 6 116 78 W1212051360
5.2 HPC.AL.1212.0520h7.12XD.135.IK.HA 6 116 78 W1212052360
5.3 HPC.AL.1212.0530h7.12XD.135.IK.HA 6 116 78 W1212053360
5.4 HPC.AL.1212.0540h7.12XD.135.IK.HA 6 116 78 W1212054360
5.5 HPC.AL.1212.0550h7.12XD.135.IK.HA 6 116 78 W1212055360
5.6 HPC.AL.1212.0560h7.12XD.135.IK.HA 6 116 78 W1212056360
5.7 HPC.AL.1212.0570h7.12XD.135.IK.HA 6 116 78 W1212057360
5.8 HPC.AL.1212.0580h7.12XD.135.IK.HA 6 116 78 W1212058360
5.9 HPC.AL.1212.0590h7.12XD.135.IK.HA 6 116 78 W1212059360
6.0 HPC.AL.1212.0600h7.12XD.135.IK.HA 6 116 78 W1212060360
6.1 HPC.AL.1212.0610h7.12XD.135.IK.HA 8 146 108 W1212061360
6.2 HPC.AL.1212.0620h7.12XD.135.IK.HA 8 146 108 W1212062360
6.3 HPC.AL.1212.0630h7.12XD.135.IK.HA 8 146 108 W1212063360
6.4 HPC.AL.1212.0640h7.12XD.135.IK.HA 8 146 108 W1212064360
6.5 HPC.AL.1212.0650h7.12XD.135.IK.HA 8 146 108 W1212065360
6.6 HPC.AL.1212.0660h7.12XD.135.IK.HA 8 146 108 W1212066360
6.7 HPC.AL.1212.0670h7.12XD.135.IK.HA 8 146 108 W1212067360
6.8 HPC.AL.1212.0680h7.12XD.135.IK.HA 8 146 108 W1212068360
6.9 HPC.AL.1212.0690h7.12XD.135.IK.HA 8 146 108 W1212069360
7.0 HPC.AL.1212.0700h7.12XD.135.IK.HA 8 146 108 W1212070360
7.1 HPC.AL.1212.0710h7.12XD.135.IK.HA 8 146 108 W1212071360
7.2 HPC.AL.1212.0720h7.12XD.135.IK.HA 8 146 108 W1212072360
7.3 HPC.AL.1212.0730h7.12XD.135.IK.HA 8 146 108 W1212073360 Solid carbide tools / Drilling
7.4 HPC.AL.1212.0740h7.12XD.135.IK.HA 8 146 108 W1212074360
7.5 HPC.AL.1212.0750h7.12XD.135.IK.HA 8 146 108 W1212075360
7.6 HPC.AL.1212.0760h7.12XD.135.IK.HA 8 146 108 W1212076360
7.7 HPC.AL.1212.0770h7.12XD.135.IK.HA 8 146 108 W1212077360
