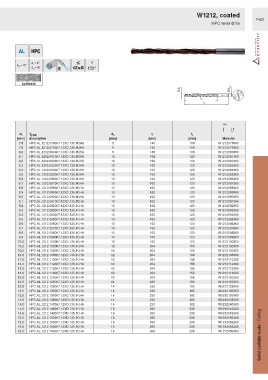

Page 1417 - Ceratizit Catalog

W1212, coated
F420
HPC twist drills

σ
135°

SCPN435
Ø d 1 Ø d A

l 2
l 1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
7.8 HPC.AL.1212.0780h7.12XD.135.IK.HA 8 146 108 W1212078360
7.9 HPC.AL.1212.0790h7.12XD.135.IK.HA 8 146 108 W1212079360
8.0 HPC.AL.1212.0800h7.12XD.135.IK.HA 8 146 108 W1212080360
8.1 HPC.AL.1212.0810h7.12XD.135.IK.HA 10 162 120 W1212081360
8.2 HPC.AL.1212.0820h7.12XD.135.IK.HA 10 162 120 W1212082360
8.3 HPC.AL.1212.0830h7.12XD.135.IK.HA 10 162 120 W1212083360
8.4 HPC.AL.1212.0840h7.12XD.135.IK.HA 10 162 120 W1212084360
8.5 HPC.AL.1212.0850h7.12XD.135.IK.HA 10 162 120 W1212085360
8.6 HPC.AL.1212.0860h7.12XD.135.IK.HA 10 162 120 W1212086360
8.7 HPC.AL.1212.0870h7.12XD.135.IK.HA 10 162 120 W1212087360
8.8 HPC.AL.1212.0880h7.12XD.135.IK.HA 10 162 120 W1212088360
8.9 HPC.AL.1212.0890h7.12XD.135.IK.HA 10 162 120 W1212089360
9.0 HPC.AL.1212.0900h7.12XD.135.IK.HA 10 162 120 W1212090360
9.1 HPC.AL.1212.0910h7.12XD.135.IK.HA 10 162 120 W1212091360
9.2 HPC.AL.1212.0920h7.12XD.135.IK.HA 10 162 120 W1212092360
9.3 HPC.AL.1212.0930h7.12XD.135.IK.HA 10 162 120 W1212093360
9.4 HPC.AL.1212.0940h7.12XD.135.IK.HA 10 162 120 W1212094360
9.5 HPC.AL.1212.0950h7.12XD.135.IK.HA 10 162 120 W1212095360
9.6 HPC.AL.1212.0960h7.12XD.135.IK.HA 10 162 120 W1212096360
9.7 HPC.AL.1212.0970h7.12XD.135.IK.HA 10 162 120 W1212097360
9.8 HPC.AL.1212.0980h7.12XD.135.IK.HA 10 162 120 W1212098360
9.9 HPC.AL.1212.0990h7.12XD.135.IK.HA 10 162 120 W1212099360
10.0 HPC.AL.1212.1000h7.12XD.135.IK.HA 10 162 120 W1212100360
10.2 HPC.AL.1212.1020h7.12XD.135.IK.HA 12 204 156 W1212102360
10.5 HPC.AL.1212.1050h7.12XD.135.IK.HA 12 204 156 W1212105360
10.8 HPC.AL.1212.1080h7.12XD.135.IK.HA 12 204 156 W1212108360
11.0 HPC.AL.1212.1100h7.12XD.135.IK.HA 12 204 156 W1212110360
11.2 HPC.AL.1212.1120h7.12XD.135.IK.HA 12 204 156 W1212112360
11.5 HPC.AL.1212.1150h7.12XD.135.IK.HA 12 204 156 W1212115360
11.8 HPC.AL.1212.1180h7.12XD.135.IK.HA 12 204 156 W1212118360
12.0 HPC.AL.1212.1200h7.12XD.135.IK.HA 12 204 156 W1212120360
12.5 HPC.AL.1212.1250h7.12XD.135.IK.HA 14 230 182 W1212125360
12.8 HPC.AL.1212.1280h7.12XD.135.IK.HA 14 230 182 W1212128360
13.0 HPC.AL.1212.1300h7.12XD.135.IK.HA 14 230 182 W1212130360
13.5 HPC.AL.1212.1350h7.12XD.135.IK.HA 14 230 182 W1212135360
13.8 HPC.AL.1212.1380h7.12XD.135.IK.HA 14 230 182 W1212138360
14.0 HPC.AL.1212.1400h7.12XD.135.IK.HA 14 230 182 W1212140360
14.5 HPC.AL.1212.1450h7.12XD.135.IK.HA 16 260 208 W1212145360
Solid carbide tools / Drilling
14.8 HPC.AL.1212.1480h7.12XD.135.IK.HA 16 260 208 W1212148360
15.0 HPC.AL.1212.1500h7.12XD.135.IK.HA 16 260 208 W1212150360
15.5 HPC.AL.1212.1550h7.12XD.135.IK.HA 16 260 208 W1212155360
15.8 HPC.AL.1212.1580h7.12XD.135.IK.HA 16 260 208 W1212158360
16.0 HPC.AL.1212.1600h7.12XD.135.IK.HA 16 260 208 W1212160360
