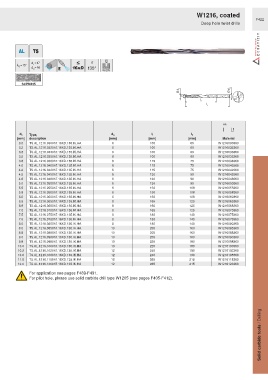

Page 1419 - Ceratizit Catalog

W1216, coated
F422
Deep hole twist drills

σ
135°
W1205

SCPN435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 TS.AL.1216.0300h7.16XD.135.IK.HA 6 100 60 W1216030360
3.2 TS.AL.1216.0320h7.16XD.135.IK.HA 6 100 60 W1216032360
3.3 TS.AL.1216.0330h7.16XD.135.IK.HA 6 100 60 W1216033360
3.5 TS.AL.1216.0350h7.16XD.135.IK.HA 6 100 60 W1216035360
3.8 TS.AL.1216.0380h7.16XD.135.IK.HA 6 115 75 W1216038360
4.0 TS.AL.1216.0400h7.16XD.135.IK.HA 6 115 75 W1216040360
4.2 TS.AL.1216.0420h7.16XD.135.IK.HA 6 115 75 W1216042360
4.5 TS.AL.1216.0450h7.16XD.135.IK.HA 6 130 90 W1216045360
4.8 TS.AL.1216.0480h7.16XD.135.IK.HA 6 130 90 W1216048360
5.0 TS.AL.1216.0500h7.16XD.135.IK.HA 6 130 90 W1216050360
5.5 TS.AL.1216.0550h7.16XD.135.IK.HA 6 150 108 W1216055360
5.8 TS.AL.1216.0580h7.16XD.135.IK.HA 6 150 108 W1216058360
6.0 TS.AL.1216.0600h7.16XD.135.IK.HA 6 150 108 W1216060360
6.5 TS.AL.1216.0650h7.16XD.135.IK.HA 8 165 125 W1216065360
6.8 TS.AL.1216.0680h7.16XD.135.IK.HA 8 165 125 W1216068360
7.0 TS.AL.1216.0700h7.16XD.135.IK.HA 8 165 125 W1216070360
7.5 TS.AL.1216.0750h7.16XD.135.IK.HA 8 180 140 W1216075360
7.8 TS.AL.1216.0780h7.16XD.135.IK.HA 8 180 140 W1216078360
8.0 TS.AL.1216.0800h7.16XD.135.IK.HA 8 180 140 W1216080360
8.5 TS.AL.1216.0850h7.16XD.135.IK.HA 10 205 160 W1216085360
8.8 TS.AL.1216.0880h7.16XD.135.IK.HA 10 205 160 W1216088360
9.0 TS.AL.1216.0900h7.16XD.135.IK.HA 10 205 160 W1216090360
9.8 TS.AL.1216.0980h7.16XD.135.IK.HA 10 225 180 W1216098360
10.0 TS.AL.1216.1000h7.16XD.135.IK.HA 10 225 180 W1216100360
10.2 TS.AL.1216.1020h7.16XD.135.IK.HA 12 240 190 W1216102360
10.8 TS.AL.1216.1080h7.16XD.135.IK.HA 12 240 190 W1216108360
11.8 TS.AL.1216.1180h7.16XD.135.IK.HA 12 265 215 W1216118360
12.0 TS.AL.1216.1200h7.16XD.135.IK.HA 12 265 215 W1216120360
For application see pages F489-F491.

For pilot hole, please use solid carbide drill type W1205 (see pages F405-F412).

Solid carbide tools / Drilling
