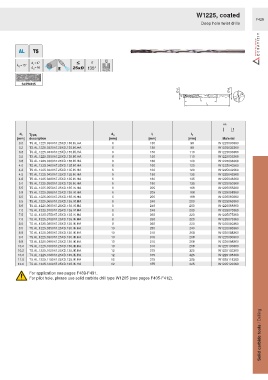

Page 1423 - Ceratizit Catalog

W1225, coated
F426
Deep hole twist drills

σ
135°
W1205

SCPN435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 TS.AL.1225.0300h7.25XD.135.IK.HA 6 135 98 W1225030360
3.2 TS.AL.1225.0320h7.25XD.135.IK.HA 6 135 98 W1225032360
3.3 TS.AL.1225.0330h7.25XD.135.IK.HA 6 150 110 W1225033360
3.5 TS.AL.1225.0350h7.25XD.135.IK.HA 6 150 110 W1225035360
3.8 TS.AL.1225.0380h7.25XD.135.IK.HA 6 160 120 W1225038360
4.0 TS.AL.1225.0400h7.25XD.135.IK.HA 6 160 120 W1225040360
4.2 TS.AL.1225.0420h7.25XD.135.IK.HA 6 160 120 W1225042360
4.5 TS.AL.1225.0450h7.25XD.135.IK.HA 6 180 135 W1225045360
4.8 TS.AL.1225.0480h7.25XD.135.IK.HA 6 180 135 W1225048360
5.0 TS.AL.1225.0500h7.25XD.135.IK.HA 6 180 135 W1225050360
5.5 TS.AL.1225.0550h7.25XD.135.IK.HA 6 205 168 W1225055360
5.8 TS.AL.1225.0580h7.25XD.135.IK.HA 6 205 168 W1225058360
6.0 TS.AL.1225.0600h7.25XD.135.IK.HA 6 205 168 W1225060360
6.5 TS.AL.1225.0650h7.25XD.135.IK.HA 8 240 200 W1225065360
6.8 TS.AL.1225.0680h7.25XD.135.IK.HA 8 240 200 W1225068360
7.0 TS.AL.1225.0700h7.25XD.135.IK.HA 8 240 200 W1225070360
7.5 TS.AL.1225.0750h7.25XD.135.IK.HA 8 260 220 W1225075360
7.8 TS.AL.1225.0780h7.25XD.135.IK.HA 8 260 220 W1225078360
8.0 TS.AL.1225.0800h7.25XD.135.IK.HA 8 260 220 W1225080360
8.5 TS.AL.1225.0850h7.25XD.135.IK.HA 10 285 240 W1225085360
8.8 TS.AL.1225.0880h7.25XD.135.IK.HA 10 310 268 W1225088360
9.0 TS.AL.1225.0900h7.25XD.135.IK.HA 10 310 268 W1225090360
9.8 TS.AL.1225.0980h7.25XD.135.IK.HA 10 310 268 W1225098360
10.0 TS.AL.1225.1000h7.25XD.135.IK.HA 10 310 268 W1225100360
10.2 TS.AL.1225.1020h7.25XD.135.IK.HA 12 375 325 W1225102360
10.8 TS.AL.1225.1080h7.25XD.135.IK.HA 12 375 325 W1225108360
11.8 TS.AL.1225.1180h7.25XD.135.IK.HA 12 375 325 W1225118360
12.0 TS.AL.1225.1200h7.25XD.135.IK.HA 12 375 325 W1225120360
For application see pages F489-F491.

For pilot hole, please use solid carbide drill type W1205 (see pages F405-F412).

Solid carbide tools / Drilling
