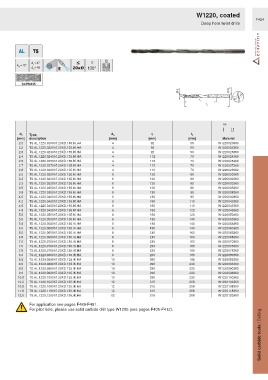

Page 1421 - Ceratizit Catalog

W1220, coated
F424
Deep hole twist drills

σ
135°
W1205

SCPN435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
2.0 TS.AL.1220.0200h7.20XD.135.IK.HA 4 92 50 W1220020360
2.2 TS.AL.1220.0220h7.20XD.135.IK.HA 4 92 50 W1220022360
2.3 TS.AL.1220.0230h7.20XD.135.IK.HA 4 92 50 W1220023360
2.4 TS.AL.1220.0240h7.20XD.135.IK.HA 4 112 70 W1220024360
2.5 TS.AL.1220.0250h7.20XD.135.IK.HA 4 112 70 W1220025360
2.7 TS.AL.1220.0270h7.20XD.135.IK.HA 4 112 70 W1220027360
2.8 TS.AL.1220.0280h7.20XD.135.IK.HA 4 112 70 W1220028360
3.0 TS.AL.1220.0300h7.20XD.135.IK.HA 6 120 80 W1220030360
3.2 TS.AL.1220.0320h7.20XD.135.IK.HA 6 120 80 W1220032360
3.3 TS.AL.1220.0330h7.20XD.135.IK.HA 6 120 80 W1220033360
3.5 TS.AL.1220.0350h7.20XD.135.IK.HA 6 120 80 W1220035360
3.8 TS.AL.1220.0380h7.20XD.135.IK.HA 6 130 90 W1220038360
4.0 TS.AL.1220.0400h7.20XD.135.IK.HA 6 130 90 W1220040360
4.2 TS.AL.1220.0420h7.20XD.135.IK.HA 6 160 110 W1220042360
4.5 TS.AL.1220.0450h7.20XD.135.IK.HA 6 160 110 W1220045360
4.8 TS.AL.1220.0480h7.20XD.135.IK.HA 6 160 120 W1220048360
5.0 TS.AL.1220.0500h7.20XD.135.IK.HA 6 160 120 W1220050360
5.5 TS.AL.1220.0550h7.20XD.135.IK.HA 6 185 140 W1220055360
5.8 TS.AL.1220.0580h7.20XD.135.IK.HA 6 185 140 W1220058360
6.0 TS.AL.1220.0600h7.20XD.135.IK.HA 6 185 140 W1220060360
6.5 TS.AL.1220.0650h7.20XD.135.IK.HA 8 210 160 W1220065360
6.8 TS.AL.1220.0680h7.20XD.135.IK.HA 8 210 160 W1220068360
7.0 TS.AL.1220.0700h7.20XD.135.IK.HA 8 210 160 W1220070360
7.5 TS.AL.1220.0750h7.20XD.135.IK.HA 8 230 180 W1220075360
7.8 TS.AL.1220.0780h7.20XD.135.IK.HA 8 230 180 W1220078360
8.0 TS.AL.1220.0800h7.20XD.135.IK.HA 8 230 180 W1220080360
8.5 TS.AL.1220.0850h7.20XD.135.IK.HA 10 260 195 W1220085360
8.8 TS.AL.1220.0880h7.20XD.135.IK.HA 10 290 230 W1220088360
9.0 TS.AL.1220.0900h7.20XD.135.IK.HA 10 290 230 W1220090360
9.8 TS.AL.1220.0980h7.20XD.135.IK.HA 10 290 230 W1220098360
10.0 TS.AL.1220.1000h7.20XD.135.IK.HA 10 290 230 W1220100360
10.2 TS.AL.1220.1020h7.20XD.135.IK.HA 12 315 268 W1220102360
10.8 TS.AL.1220.1080h7.20XD.135.IK.HA 12 315 268 W1220108360
11.8 TS.AL.1220.1180h7.20XD.135.IK.HA 12 315 268 W1220118360
12.0 TS.AL.1220.1200h7.20XD.135.IK.HA 12 315 268 W1220120360
For application see pages F489-F491.

For pilot hole, please use solid carbide drill type W1205 (see pages F405-F412).
