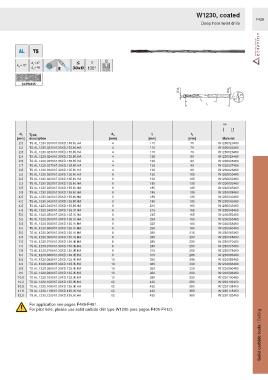

Page 1425 - Ceratizit Catalog

W1230, coated
F428
Deep hole twist drills

σ
135°
W1205

SCPN435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
2.0 TS.AL.1230.0200h7.30XD.135.IK.HA 4 115 70 W1230020460
2.2 TS.AL.1230.0220h7.30XD.135.IK.HA 4 115 70 W1230022460
2.3 TS.AL.1230.0230h7.30XD.135.IK.HA 4 115 70 W1230023460
2.4 TS.AL.1230.0240h7.30XD.135.IK.HA 4 138 90 W1230024460
2.5 TS.AL.1230.0250h7.30XD.135.IK.HA 4 138 90 W1230025460
2.7 TS.AL.1230.0270h7.30XD.135.IK.HA 4 138 90 W1230027460
2.8 TS.AL.1230.0280h7.30XD.135.IK.HA 4 138 90 W1230028460
3.0 TS.AL.1230.0300h7.30XD.135.IK.HA 6 150 105 W1230030460
3.2 TS.AL.1230.0320h7.30XD.135.IK.HA 6 150 105 W1230032460
3.3 TS.AL.1230.0330h7.30XD.135.IK.HA 6 185 135 W1230033460
3.5 TS.AL.1230.0350h7.30XD.135.IK.HA 6 185 135 W1230035460
3.8 TS.AL.1230.0380h7.30XD.135.IK.HA 6 185 135 W1230038460
4.0 TS.AL.1230.0400h7.30XD.135.IK.HA 6 185 135 W1230040460
4.2 TS.AL.1230.0420h7.30XD.135.IK.HA 6 185 135 W1230042460
4.5 TS.AL.1230.0450h7.30XD.135.IK.HA 6 215 165 W1230045460
4.8 TS.AL.1230.0480h7.30XD.135.IK.HA 6 215 165 W1230048460
5.0 TS.AL.1230.0500h7.30XD.135.IK.HA 6 215 165 W1230050460
5.5 TS.AL.1230.0550h7.30XD.135.IK.HA 6 230 180 W1230055460
5.8 TS.AL.1230.0580h7.30XD.135.IK.HA 6 230 180 W1230058460
6.0 TS.AL.1230.0600h7.30XD.135.IK.HA 6 230 180 W1230060460
6.5 TS.AL.1230.0650h7.30XD.135.IK.HA 8 280 215 W1230065460
6.8 TS.AL.1230.0680h7.30XD.135.IK.HA 8 280 230 W1230068460
7.0 TS.AL.1230.0700h7.30XD.135.IK.HA 8 280 230 W1230070460
7.5 TS.AL.1230.0750h7.30XD.135.IK.HA 8 280 230 W1230075460
7.8 TS.AL.1230.0780h7.30XD.135.IK.HA 8 315 265 W1230078460
8.0 TS.AL.1230.0800h7.30XD.135.IK.HA 8 315 265 W1230080460
8.5 TS.AL.1230.0850h7.30XD.135.IK.HA 10 350 295 W1230085460
8.8 TS.AL.1230.0880h7.30XD.135.IK.HA 10 380 330 W1230088460
9.0 TS.AL.1230.0900h7.30XD.135.IK.HA 10 380 330 W1230090460
9.8 TS.AL.1230.0980h7.30XD.135.IK.HA 10 380 330 W1230098460
10.0 TS.AL.1230.1000h7.30XD.135.IK.HA 10 380 330 W1230100460
10.2 TS.AL.1230.1020h7.30XD.135.IK.HA 12 430 380 W1230102460
10.8 TS.AL.1230.1080h7.30XD.135.IK.HA 12 430 380 W1230108460
11.8 TS.AL.1230.1180h7.30XD.135.IK.HA 12 430 380 W1230118460
12.0 TS.AL.1230.1200h7.30XD.135.IK.HA 12 430 380 W1230120460
For application see pages F489-F491.

For pilot hole, please use solid carbide drill type W1205 (see pages F405-F412).
