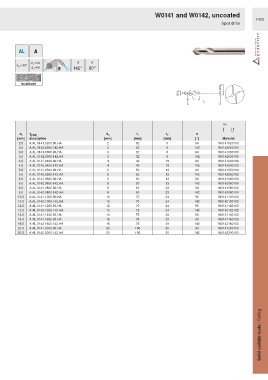

Page 1427 - Ceratizit Catalog

W0141 and W0142, uncoated
F430
Spot drills

σ σ
142° 90°

SCWN425
Ø d A
Ø d 1 σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2 σ
[mm] description [mm] [mm] [mm] [°] Material
2.0 A.AL.0141.0200.90.HA 2 32 6 90 W0141020100
2.0 A.AL.0142.0200.142.HA 2 32 6 142 W0142020100
3.0 A.AL.0141.0300.90.HA 3 32 8 90 W0141030100
3.0 A.AL.0142.0300.142.HA 3 32 8 142 W0142030100
4.0 A.AL.0141.0400.90.HA 4 40 10 90 W0141040100
4.0 A.AL.0142.0400.142.HA 4 40 10 142 W0142040100
5.0 A.AL.0141.0500.90.HA 5 50 13 90 W0141050100
5.0 A.AL.0142.0500.142.HA 5 50 13 142 W0142050100
6.0 A.AL.0141.0600.90.HA 6 50 13 90 W0141060100
6.0 A.AL.0142.0600.142.HA 6 50 13 142 W0142060100
8.0 A.AL.0141.0800.90.HA 8 60 23 90 W0141080100
8.0 A.AL.0142.0800.142.HA 8 60 23 142 W0142080100
10.0 A.AL.0141.1000.90.HA 10 70 24 90 W0141100100
10.0 A.AL.0142.1000.142.HA 10 70 24 142 W0142100100
12.0 A.AL.0141.1200.90.HA 12 70 24 90 W0141120100
12.0 A.AL.0142.1200.142.HA 12 70 24 142 W0142120100
14.0 A.AL.0141.1400.90.HA 14 75 26 90 W0141140100
16.0 A.AL.0141.1600.90.HA 16 75 29 90 W0141160100
16.0 A.AL.0142.1600.142.HA 16 75 29 142 W0142160100
20.0 A.AL.0141.2000.90.HA 20 100 35 90 W0141200100
20.0 A.AL.0142.2000.142.HA 20 100 35 142 W0142200100

Solid carbide tools / Drilling
