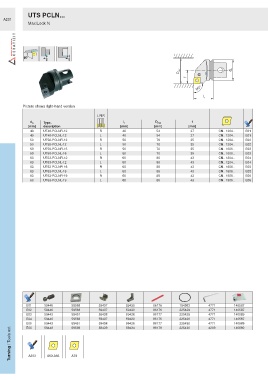

Page 222 - Ceratizit Catalog
P. 222
UTS PCLN...
A201
MaxiLock N
95°
D min d A
f
95°
l 1
Picture shows right-hand version
L N R
d A Type, l 1 D min f
[mm] description [mm] [mm] [mm]
40 UT40-PCLNR-12 R 40 54 27 CN.. 1204.. E01
40 UT40-PCLNL-12 L 40 54 27 CN.. 1204.. E01
50 UT50-PCLNR-12 R 50 70 35 CN.. 1204.. E02
50 UT50-PCLNL-12 L 50 70 35 CN.. 1204.. E02
50 UT50-PCLNR-16 R 50 70 35 CN.. 1606.. E03
50 UT50-PCLNL-16 L 50 70 35 CN.. 1606.. E03
63 UT63-PCLNR-12 R 60 86 43 CN.. 1204.. E04
63 UT63-PCLNL-12 L 60 86 43 CN.. 1204.. E04
63 UT63-PCLNR-16 R 60 86 43 CN.. 1606.. E05
63 UT63-PCLNL-16 L 60 86 43 CN.. 1606.. E05
63 UT63-PCLNR-19 R 60 86 43 CN.. 1906.. E06
63 UT63-PCLNL-19 L 60 86 43 CN.. 1906.. E06
E01 59446 59568 59437 59430 86176 194263 4771 140587
E02 59446 59568 59437 59430 86176 225429 4771 140587
E03 59443 59451 59438 59426 86177 225429 4771 140589
E04 59446 59568 59437 59430 86176 225430 4771 140587
E05 59443 59451 59438 59426 86177 225430 4771 140589
Turning / Tools ext. A303 A63-A66 A79
140590
59569
59439
E06
59448
225430
4209
59434
86178
