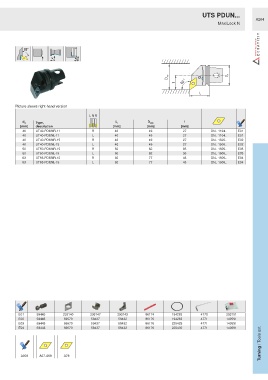

P. 225
UTS PDUN...
A204
MaxiLock N
93°
D min d A
93°
f
l 1
Picture shows right-hand version
L N R
d A Type, l 1 D min f
[mm] description [mm] [mm] [mm]
40 UT40-PDUNR-11 R 40 49 27 DN.. 1104.. E01
40 UT40-PDUNL-11 L 40 49 27 DN.. 1104.. E01
40 UT40-PDUNR-15 R 40 49 27 DN.. 1506.. E02
40 UT40-PDUNL-15 L 40 49 27 DN.. 1506.. E02
50 UT50-PDUNR-15 R 50 62 35 DN.. 1506.. E03
50 UT50-PDUNL-15 L 50 62 35 DN.. 1506.. E03
63 UT63-PDUNR-15 R 60 77 43 DN.. 1506.. E04
63 UT63-PDUNL-15 L 60 77 43 DN.. 1506.. E04
E01 59445 293140 293147 293143 86174 194263 4770 293151
E02 59443 59570 59437 59432 86176 194263 4771 140591
E03 59443 59570 59437 59432 86176 225429 4771 140591
Turning / Tools ext.
E04 59443 59570 59437 59432 86176 225430 4771 140591
A303 A67-A69 A79
