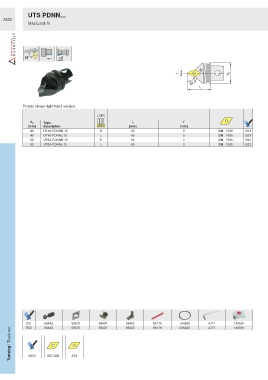

P. 224
UTS PDNN...
A203
MaxiLock N
63°
f d A
62,5°
l 1
Picture shows right-hand version
L N R
d A Type, l 1 f
[mm] description [mm] [mm]
40 UT40-PDNNR-15 R 45 0 DN.. 1506.. E01
40 UT40-PDNNL-15 L 45 0 DN.. 1506.. E01
63 UT63-PDNNR-15 R 60 0 DN.. 1506.. E02
63 UT63-PDNNL-15 L 60 0 DN.. 1506.. E02
E01 59443 59570 59437 59432 86176 194263 4771 140591
Turning / Tools ext. A303 A67-A69 A79
140591
4771
E02
59570
59443
59437
225430
86176
59432
