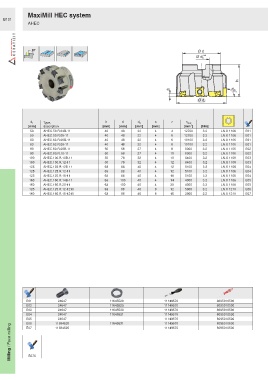

Page 428 - Ceratizit Catalog

MaxiMill HEC system
B101
AHEC

88° Ø d
H6
Ø d A

h

a 88°

Ø d 1

d 1 Type, h d d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

50 AHEC.50.R.04B-11 40 48 22 4 4 12700 3.2 LN.X 1106 E01

50 AHEC.50.R.06-11 40 48 22 4 6 12700 3.2 LN.X 1106 E01

63 AHEC.63.R.06B-11 40 48 22 4 6 10100 3.2 LN.X 1106 E01

63 AHEC.63.R.08-11 40 48 22 4 8 10100 3.2 LN.X 1106 E01

80 AHEC.80.R.08B-11 50 58 27 4 8 8000 3.2 LN.X 1106 E02

80 AHEC.80.R.10-11 50 58 27 4 10 8000 3.2 LN.X 1106 E02

100 AHEC.100.R.10B-11 50 78 32 4 10 6400 3.2 LN.X 1106 E03

100 AHEC.100.R.12-11 50 78 32 4 12 6400 3.2 LN.X 1106 E03

125 AHEC.125.R.12B-11 63 88 40 4 12 5100 3.2 LN.X 1106 E04

125 AHEC.125.R.12-11 63 88 40 4 12 5100 3.2 LN.X 1106 E04

125 AHEC.125.R.16-11 63 88 40 4 16 5100 3.2 LN.X 1106 E04

160 AHEC.160.R.14B-11 63 100 40 4 14 4000 3.2 LN.X 1106 E05

160 AHEC.160.R.20-11 63 100 40 4 20 4000 3.2 LN.X 1106 E05

125 AHEC.125.R.12-1210 63 88 40 8 12 5000 3.2 LN.X 1210 E06

160 AHEC.160.R.16-1210 63 88 40 8 16 3900 3.2 LN.X 1210 E07
E01 24647 11645528 11149570 8095010500
E02 24647 11645529 11149570 8095010500
E03 24647 11645530 11149570 8095010500
E04 24647 11645531 11149570 8095010500
E05 11684526 11645531 11149570 8095010500
24647
11149570
E06
8095010500
Milling / Face milling B276
11684526
E07
8095010500
11149570
