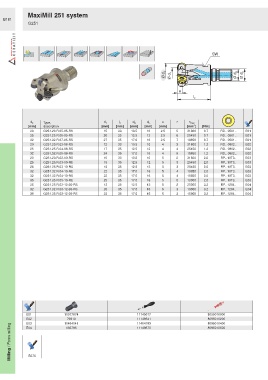

Page 508 - Ceratizit Catalog

MaxiMill 251 system
B181
G251

SW

Ø d 2 Ø d 1 Ø d G Ø d A

a

l 2

d 2 Type, d 1 l 2 d A d G a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [mm] [min ] [Nm]

20 G251.20.R.05-05-RS 15 33 10.5 10 2.5 5 31800 0.7 RD.. 0501.. E01

25 G251.25.R.06-05-RS 20 35 12.5 12 2.5 6 25450 0.7 RD.. 0501.. E01

32 G251.32.R.07-05-RS 27 35 17.0 16 2.5 7 19850 0.7 RD.. 0501.. E01
20 G251.20.R.03-08-RS 12 33 10.5 10 4 3 31800 1.2 RD.. 0802.. E02

25 G251.25.R.04-08-RS 17 35 12.5 12 4 4 25450 1.2 RD.. 0802.. E02

32 G251.32.R.05-08-RS 24 35 17.0 16 4 5 19850 1.2 RD.. 0802.. E02

20 G251.20.R.02-10-RS 10 33 10.5 10 5 2 31800 2.0 RP.. 10T3.. E03

25 G251.25.R.03-10-RE 15 35 12.5 12 5 3 25450 2.0 RP.. 10T3.. E03
25 G251.25.R.03-10-RS 15 35 12.5 12 5 3 25450 2.0 RP.. 10T3.. E03

32 G251.32.R.04-10-RE 22 35 17.0 16 5 4 19850 2.0 RP.. 10T3.. E03

32 G251.32.R.04-10-RS 22 35 17.0 16 5 4 19850 2.0 RP.. 10T3.. E03

35 G251.35.R.05-10-RE 25 35 17.0 16 5 5 19000 2.0 RP.. 10T3.. E03

25 G251.25.R.02-12-35-RS 13 35 12.5 12 6 2 25000 3.2 RP.. 1204.. E04

32 G251.32.R.03-12-35-RS 20 35 17.0 16 6 3 19000 3.2 RP.. 1204.. E04

35 G251.35.R.03-12-35-RS 23 35 17.0 16 6 3 15900 3.2 RP.. 1204.. E04

E01 11077874 11149517 8095010000
76913
E02 11464141 11149541 8095010200
11464183
8095010400
E03
Milling / Form milling B276
11149570
8095010500
165795
E04
