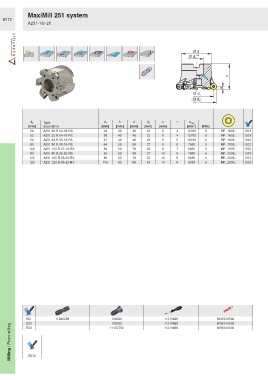

Page 506 - Ceratizit Catalog
P. 506
MaxiMill 251 system
B179
A251-16/-20
Ø d
H6
Ø d A
h
a
Ø d 1
Ø d 2
d 2 Type, d 1 h d d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [mm] [min ] [Nm]
50 A251.50.R.04-16-RS 34 40 48 22 8 4 12700 5 RP.. 1605.. E01
52 A251.52.R.04-16-RS 36 40 48 22 8 4 12700 5 RP.. 1605.. E01
63 A251.63.R.05-16-RS 47 40 48 22 8 5 10100 5 RP.. 1605.. E02
80 A251.80.R.06-16-RS 64 50 58 27 8 6 7950 5 RP.. 1605.. E02
100 A251.100.R.07-16-RS 84 50 78 32 8 7 6350 5 RP.. 1605.. E02
80 A251.80.R.05-20-RS 60 50 58 27 10 5 7950 5 RP.. 2006.. E03
100 A251.100.R.06-20-RS 80 50 78 32 10 6 6350 5 RP.. 2006.. E03
125 A251.125.R.06-20-RS 105 63 88 40 10 6 5050 5 RP.. 2006.. E03
E01 11040298 11107792 11210490 8095010600
106022
106022
E02
8095010600
11210490
Milling / Form milling B276
E03
11210490
8095010600
