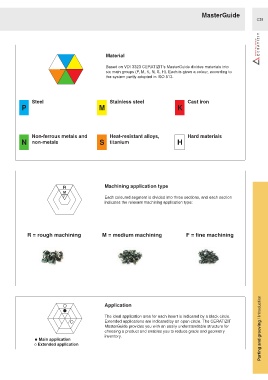

P. 643
MasterGuide
C38
Material
Based on VDI 3323 CERATIZIT’s MasterGuide divides materials into
six main groups (P, M, K, N, S, H). Each is given a colour, according to
the system partly adopted in ISO 513.
Steel Stainless steel Cast iron
P M K
Non-ferrous metals and Heat-resistant alloys, Hard materials
N non-metals S titanium H
Machining application type
Each coloured segment is divided into three sections, and each section
indicates the relevant machining application type:
R = rough machining M = medium machining F = fine machining
Parting and grooving / Introduction
Application
The ideal application area for each insert is indicated by a black circle.
Extended applications are indicated by an open circle. The CERATIZIT
MasterGuide provides you with an easily understandable structure for
choosing a product and enables you to reduce grade and geometry
inventory.
● Main application
o Extended application
