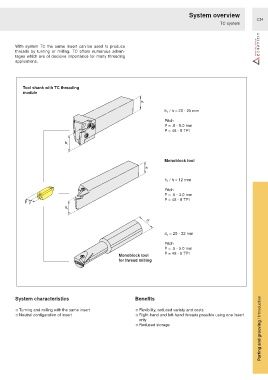

P. 639

System overview
                                                                                                                   C34
                                                                                                   TC system




        With system TC the same insert can be used to produce
        threads by turning or milling. TC offers numerous advan-
        tages which are of decisive importance for many threading
        applications.





           Tool shank with TC threading
           module

                                                                h
                                                                          h  / h = 20 - 25 mm
                                                                           1

                                                                          Pitch
                                                                          P = .5 - 5.0 mm
                                                                          P = 48 - 5 TPI


                              h 1


                                                                          Monoblock tool
                                                                  h

                                                                          h  / h = 12 mm
                                                                           1

                                                                          Pitch
                                                                          P = .5 - 3.0 mm
                                                                          P = 48 - 8 TPI
            P  P
                              h 1


                                                                  d 1
                                                                          d  = 25 - 32 mm
                                                                           1

                                                                          Pitch
                                                                          P = .5 - 5.0 mm
                                                                          P = 48 - 5 TPI
                                                      Monoblock tool
                                                      for thread milling








                                                                                                                     Parting and grooving / Introduction
        System characteristics                               Benefits
        ○ Turning and milling with the same insert           ○ Flexibility, reduced variety and costs
        ○  Neutral configuration of insert                   ○  Right-hand and left-hand threads possible using one insert
                                                               only
                                                             ○  Reduced storage
