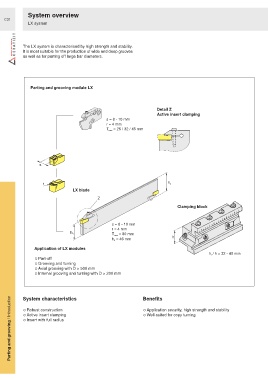

Page 636 - Ceratizit Catalog

System overview
C31
LX system

The LX system is characterised by high strength and stability.
It is most suitable for the production of wide and deep grooves
as well as for parting off large bar diameters.

Parting and grooving module LX

Detail Z
Active insert clamping
s = 8 - 10 mm
r = 4 mm
= 25 / 32 / 45 mm
T max

s

r h 2
LX blade
Z

Clamping block

s = 8 - 10 mm
r = 4 mm
h 1 = 80 mm
T max h
h= 46 mm
2
Application of LX modules
h/ h = 32 - 40 mm
1
○ Part-off
○ Grooving and turning
○ Axial grooving with D > 500 mm
○ Internal grooving and turning with D > 200 mm Benefits

Parting and grooving / Introduction ○ Robust construction ○ Application security, high strength and stability
System characteristics

○ Active insert clamping
○ Well-suited for copy turning
○ Insert with full radius
