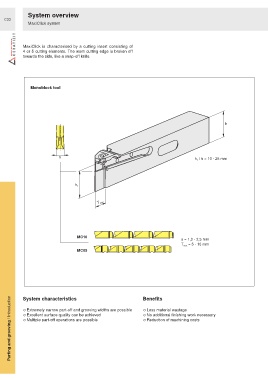

System overview
C33
MaxiClick system

MaxiClick is characterised by a cutting insert consisting of
4 or 5 cutting elements. The worn cutting edge is broken off
towards the side, like a snap-off knife.

Monoblock tool

h

s h/ h = 10 - 25 mm
1

h 1

T max

MC10
s = 1,0 - 2,5 mm
= 5 - 10 mm
T max
MC05

Parting and grooving / Introduction System characteristics Benefits

○ Less material wastage
○ Extremely narrow part-off and grooving widths are possible
○ Excellent surface quality can be achieved
○ No additional finishing work necessary
○ Multiple part-off operations are possible
○ Reduction of machining costs
