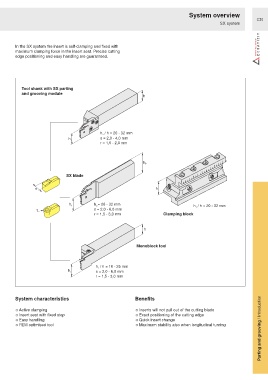

System overview
C30
SX system

In the SX system the insert is self-clamping and fixed with
maximum clamping force in the insert seat. Precise cutting
edge positioning and easy handling are guaranteed.

Tool shank with SX parting
and grooving module
h

h/ h = 20 - 32 mm
1
s = 2,0 - 4,0 mm
h 1
r = 1,5 - 2,0 mm

h 2

SX blade

s h

h= 26 - 32 mm
2 h/ h = 20 - 32 mm
h 1
1
r s = 2,0 - 6,0 mm
r = 1,5 - 3,0 mm Clamping block
h

Monoblock tool

h/ h = 16 - 25 mm
1
h 1 s = 2,0 - 6,0 mm
r = 1,5 - 3,0 mm

Parting and grooving / Introduction
System characteristics Benefits
○ Active clamping ○ Inserts will not pull out of the cutting blade
○ Insert seat with fixed stop ○ Exact positioning of the cutting edge
○ Easy handling ○ Quick insert change
○ FEM optimised tool ○ Maximum stability also when longitudinal turning
