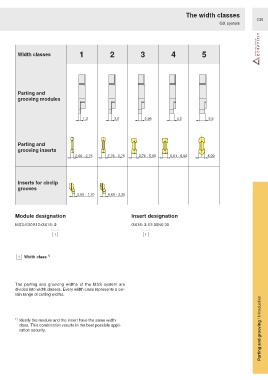

The width classes
C26
GX system
Width classes 1 2 3 4 5
Parting and
grooving modules
1,3 2,0 2,95 4,2 5,9
Parting and
grooving inserts
2,00 - 2,75 2,76 - 3,75 3,76 - 5,00 5,01 - 6,50 8,00
Inserts for circlip
grooves
0,60 - 1,70 0,60 - 2,25
Module designation Insert designation
MSS-E20R12-GX16- 2 GX16- 2 E3.00N0.30
1 1
1 Width class 1)
The parting and grooving widths of the MSS system are
divided into width classes. Every width class represents a cer-
tain range of cutting widths.
Parting and grooving / Introduction
1)
Ideally the module and the insert have the same width
class. This combination results in the best possible appli-
cation security.
