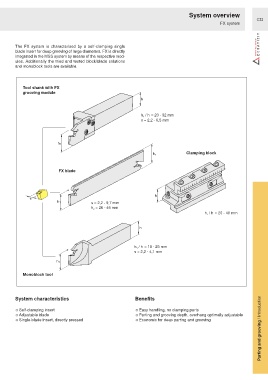

System overview
C32
FX system

The FX system is characterised by a self-clamping single
blade insert for deep grooving of large diameters. FX is directly
integrated in the MSS system by means of the respective mod-
ules. Additionally the tried and tested block/blade solutions
and monoblock tools are available.

Tool shank with FX
grooving module
h

h/ h= 20 - 32 mm
1
s = 2,2 - 6,5 mm

h 1
Clamping block

FX blade

h
s
h 1 s = 2,2 - 9,7 mm
h= 26 - 46 mm
2
h/ h= 20 - 40 mm
1

h

h/ h= 10 - 25 mm
1
s = 2,2 - 4,1 mm
h 1

Monoblock tool

Parting and grooving / Introduction
System characteristics Benefits
○ Self-clamping insert ○ Easy handling, no clamping parts
○ Adjustable blade ○ Parting and grooving depth, overhang optimally adjustable
○ Single-blade insert, directly pressed ○ Economic for deep parting and grooving
