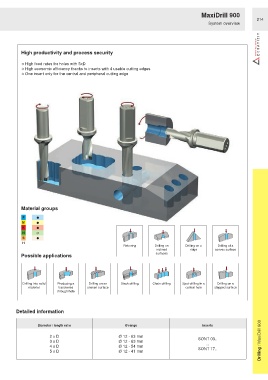

P. 889
MaxiDrill 900
D14
System overview
High productivity and process security
○ High feed rates for holes with 5xD
○ High economic efficiency thanks to inserts with 4 usable cutting edges
○ One insert only for the central and peripheral cutting edge
Material groups
P ●
M ●
K ●
N ○
S ●
H
Reboring Drilling on Drilling on a Drilling of a
inclined ridge convex surface
surfaces
Possible applications
Drilling into solid Producing a Drilling on an Stack drilling Chain drilling Spot drilling in a Drilling on a
material transverse uneven surface central hole stepped surface
through hole
Detailed information
Drilling / MaxiDrill 900
Diameter / length ratio Ø range Inserts
2 x D Ø 12 - 63 mm
SONT 03..
3 x D Ø 12 - 63 mm
..
4 x D Ø 12 - 54 mm
SONT 17..
5 x D Ø 12 - 41 mm
