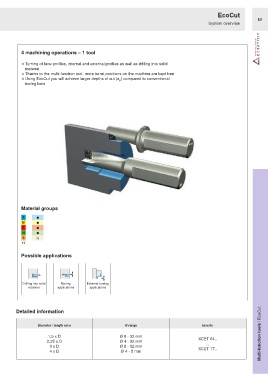

Page 933 - Ceratizit Catalog
P. 933
EcoCut
E6
System overview
4 machining operations – 1 tool
○ Turning of face profiles, internal and external profiles as well as drilling into solid
material
○ Thanks to the multi-function tool, more turret positions on the machine are kept free
○ Using EcoCut you will achieve larger depths of cut (a ) compared to conventional
p
boring bars
Material groups
P ●
M ●
K ●
N ●
S ○
H
Possible applications
Drilling into solid Boring External turning
material applications applications
Multi-function tools / EcoCut
Detailed information
Diameter / length ratio Ø range Inserts
1,5 x D Ø 8 - 32 mm
XCET 04..
2,25 x D Ø 4 - 32 mm
..
3 x D Ø 8 - 32 mm
XCET 17..
4 x D Ø 4 - 8 mm
