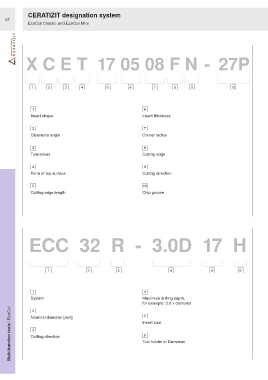

CERATIZIT designation system
E7
EcoCut Classic and EcoCut Mini

1 2 3 4 5 6 7 8 9 10

1 6
Insert shape Insert thickness

2 7
Clearance angle Corner radius

3 8
Tolerances Cutting edge

4 9
Form of top surface Cutting direction

5 10
Cutting edge length Chip groove

1 2 3 4 5 6

1 4
System Maximum drilling depth,
for example: 3.0 x diameter
Multi-function tools / EcoCut Cutting direction Insert size
2
5
Nominal diameter [mm]

3
6
Tool holder in Densimet
