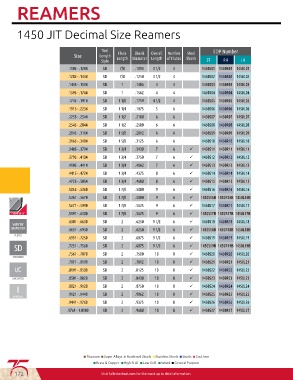

Page 174 - Fullerton Tool Catalog

REAMERS

1450 JIT Decimal Size Reamers

Tool Flute Shank Overall Number Steel EDP Number
Size Length Length Diameter Length of Flutes Shank
Style ST RH LH
.1105 - .1284 SD 7/8 .1094 3 1/2 4 1450S01 1450R01 1450L01
.1285 - .1444 SD 7/8 .1250 3 1/2 4 1450S02 1450R02 1450L02
.1445 - .1594 SD 1 .1406 4 4 1450S03 1450R03 1450L03
.1595 - .1744 SD 1 .1562 4 4 1450S04 1450R04 1450L04

.1745 - .1914 SD 1 1/8 .1719 4 1/2 4 1450S05 1450R05 1450L05
.1915 - .2234 SD 1 1/4 .1875 5 6 1450S06 1450R06 1450L06
.2235 - .2544 SD 1 1/2 .2188 6 6 1450S07 1450R07 1450L07
.2545 - .2844 SD 1 1/2 .2500 6 6 1450S08 1450R08 1450L08
.2845 - .3164 SD 1 5/8 .2812 6 6 1450S09 1450R09 1450L09
.3165 - .3484 SD 1 5/8 .3125 6 6 1450S10 1450R10 1450L10
.3485 - .3794 SD 1 3/4 .3438 7 6 ü 1450S11 1450R11 1450L11
.3795 - .4104 SD 1 3/4 .3750 7 6 ü 1450S12 1450R12 1450L12
.4105 - .4414 SD 1 3/4 .4062 7 6 ü 1450S13 1450R13 1450L13
.4415 - .4724 SD 1 3/4 .4375 8 6 ü 1450S14 1450R14 1450L14
.4725 - .5054 SD 1 3/4 .4688 8 6 ü 1450S15 1450R15 1450L15

.5055 - .5360 SD 1 7/8 .5000 9 6 ü 1450S16 1450R16 1450L16
.5361 - .5670 SD 1 7/8 .5000 9 6 ü 1450S16B 1450R16B 1450L16B
.5671 - .5990 SD 1 7/8 .5625 9 6 ü 1450S17 1450R17 1450L17
.5991 - .6300 SD 1 7/8 .5625 9 6 ü 1450S17B 1450R17B 1450L17B
.6301 - .6630 SD 2 .6250 9 1/2 6 ü 1450S18 1450R18 1450L18
.6631 - .6930 SD 2 .6250 9 1/2 6 ü 1450S18B 1450R18B 1450L18B
.6931 - .7250 SD 2 .6875 9 1/2 6 ü 1450S19 1450R19 1450L19
.7251 - .7560 SD 2 .6875 9 1/2 6 ü 1450S19B 1450R19B 1450L19B

.7561 - .7870 SD 2 .7500 10 8 ü 1450S20 1450R20 1450L20
.7871 - .8190 SD 2 .7812 10 8 ü 1450S21 1450R21 1450L21
.8191 - .8500 SD 2 .8125 10 8 ü 1450S22 1450R22 1450L22
UNCOATED .8501 - .8820 SD 2 .8438 10 8 ü 1450S23 1450R23 1450L23
I .8821 - .9120 SD 2 .8750 10 8 ü 1450S24 1450R24 1450L24

IMPERIAL .9121 - .9440 SD 2 .9062 10 8 ü 1450S25 1450R25 1450L25
.9441 - .9760 SD 2 .9375 10 8 ü 1450S26 1450R26 1450L26
.9761 - 1.0100 SD 2 .9688 10 8 ü 1450S27 1450R27 1450L27

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Wood ■ General Purpose
