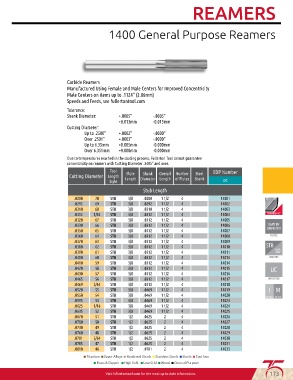

Page 175 - Fullerton Tool Catalog

REAMERS

1400 General Purpose Reamers

Carbide Reamers
Manufactured Using Female and Male Centers for Improved Concentricity
Male Centers on items up to .1124” (2.86mm)
Speeds and Feeds, see fullertontool.com
Tolerance:
Shank Diameter: +.0005” -.0005”
+0.013mm -0.013mm
Cutting Diameter:
Up to .2500” +.0002” -.0000”
Over .2501” +.0003” -.0000”
Up to 6.35mm +0.005mm -0.000mm
Over 6.351mm +0.008mm -0.000mm
Due to temperatures reached in the coating process, Fullerton Tool cannot guarantee
concentricity on reamers with Cutting Diameter .3485” and over.
Tool Flute Shank Overall Number Steel EDP Number
Cutting Diameter Length Length Diameter Length of Flutes Shank
Style UC

Stub Length
.0280 70 STB 3/8 .0280 1 1/2 4 14001
.0292 69 STB 3/8 .0292 1 1/2 4 14002
.0310 68 STB 3/8 .0310 1 1/2 4 14003
.0312 1/32 STB 3/8 .0312 1 1/2 4 14004
.0320 67 STB 3/8 .0312 1 1/2 4 14005
.0330 66 STB 3/8 .0312 1 1/2 4 14006
.0350 65 STB 3/8 .0312 1 1/2 4 14007
.0360 64 STB 3/8 .0312 1 1/2 4 14008
.0370 63 STB 3/8 .0312 1 1/2 4 14009
.0380 62 STB 3/8 .0312 1 1/2 4 14010
.0390 61 STB 3/8 .0312 1 1/2 4 14011
.0400 60 STB 3/8 .0312 1 1/2 4 14013
.0410 59 STB 3/8 .0312 1 1/2 4 14014
.0420 58 STB 3/8 .0312 1 1/2 4 14015
.0430 57 STB 3/8 .0312 1 1/2 4 14016
.0465 56 STB 3/8 .0312 1 1/2 4 14017 UNCOATED
.0469 3/64 STB 3/8 .0312 1 1/2 4 14018
.0520 55 STB 3/8 .0469 1 1/2 4 14019 I M
.0550 54 STB 3/8 .0469 1 1/2 4 14020 IMPERIAL METRIC
.0595 53 STB 3/8 .0469 1 1/2 4 14023
.0625 1/16 STB 3/8 .0469 1 1/2 4 14024
.0635 52 STB 3/8 .0469 1 1/2 4 14025
.0670 51 STB 1/2 .0625 2 4 14026
.0700 50 STB 1/2 .0625 2 4 14027
.0730 49 STB 1/2 .0625 2 4 14028
.0760 48 STB 1/2 .0625 2 4 14029
.0781 5/64 STB 1/2 .0625 2 4 14030
.0785 47 STB 1/2 .0625 2 4 14031
.0810 46 STB 1/2 .0781 2 4 14033
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Wood ■ General Purpose

Visit fullertontool.com for the most up to date information. 173
