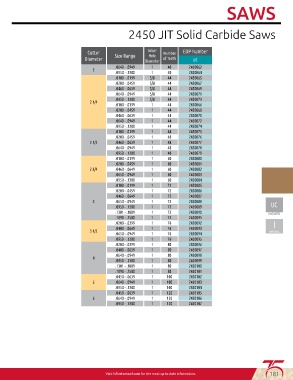

Page 183 - Fullerton Tool Catalog

Cutter Size Range Arbor Number EDP Number
Hole
Diameter Diameter of Teeth UC
.0640 - .0949 1 40 2450062
2
.0950 - .1300 1 40 2450064
.0100 - .0199 5/8 44 2450065
.0200 - .0459 5/8 44 2450067
.0460 - .0639 5/8 44 2450069
.0640 - .0949 5/8 44 2450071
.0950 - .1300 5/8 44 2450073
2 1/4
.0100 - .0199 1 44 2450066
.0200 - .0459 1 44 2450068
.0460 - .0639 1 44 2450070
.0640 - .0949 1 44 2450072
.0950 - .1300 1 44 2450074
.0100 - .0199 1 48 2450075
.0200 - .0459 1 48 2450076
2 1/2 .0460 - .0639 1 48 2450077
.0640 - .0949 1 48 2450078
.0950 - .1300 1 48 2450079
.0100 - .0199 1 60 2450080
.0200 - .0459 1 60 2450081
2 3/4 .0460 - .0649 1 60 2450082
.0650 - .0949 1 60 2450083
.0950 - .1300 1 60 2450084
.0100 - .0199 1 72 2450085
.0200 - .0459 1 72 2450086
.0460 - .0649 1 72 2450087
3 .0650 - .0949 1 72 2450088
.0950 - .1300 1 72 2450089
.1301 - .1889 1 72 2450090
.1890 - .2500 1 72 2450091
.0200 - .0399 1 76 2450092
.0400 - .0649 1 76 2450093
3 1/2
.0650 - .0949 1 76 2450094
.0950 - .1300 1 76 2450095
.0200 - .0399 1 80 2450096
.0400 - .0639 1 80 2450097
.0640 - .0949 1 80 2450098
4
.0950 - .1300 1 80 2450099
.1301 - .1889 1 80 2450100
.1890 - .2500 1 80 2450101
.0450 - .0639 1 100 2450102
5 .0640 - .0949 1 100 2450103
.0950 - .1300 1 100 2450104
.0450 - .0639 1 120 2450105
6 .0640 - .0949 1 120 2450106
.0950 - .1300 1 120 2450107

Visit fullertontool.com for the most up to date information. 181
