SAWS

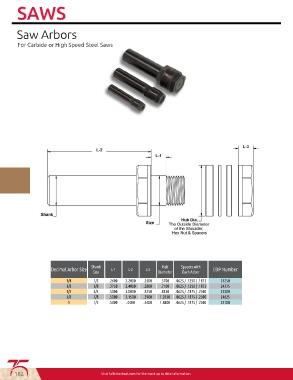

Saw Arbors
For Carbide or High Speed Steel Saws
Hub
Decimal Arbor Size Shank L-1 L-2 L-3 Diameter Spacers with EDP Number
Each Arbor
Size
1/4 1/2 .2600 2.2000 .2500 .5700 .0625 / .1250 / .1875 24250
3/8 5/8 .3750 2.4000 .2800 .7100 .0625 / .1250 / .1875 24375
1/2 3/4 .5000 3.0000 .3250 .8550 .0625 / .1875 / .2500 24500
5/8 7/8 .5000 3.1500 .3900 1.0750 .0625 / .1875 / .2500 24625
1 1/2 .5000 .4400 .4400 1.4800 .0625 / .1875 / .2500 24100
