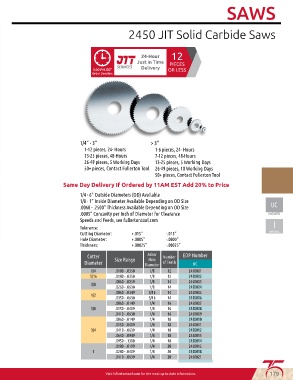

Page 181 - Fullerton Tool Catalog

24-Hour 12
Just in Time PIECES
Delivery
3:00 PM EST OR LESS
Order Deadline

1/4” - 3” > 3”
1-12 pieces, 24- Hours 1-6 pieces, 24- Hours
13-25 pieces, 48-Hours 7-12 pieces, 48-Hours
26-49 pieces, 5 Working Days 13-25 pieces, 5 Working Days
50+ pieces, Contact Fullerton Tool 26-49 pieces, 10 Working Days
50+ pieces, Contact Fullerton Tool
Same Day Delivery If Ordered by 11AM EST Add 20% to Price

1/4 - 6” Outside Diameters (OD) Available
1/8 - 1” Inside Diameter Available Depending on OD Size
.0060 - .2500” Thickness Available Depending on OD Size
.0005” Concavity per Inch of Diameter for Clearance
Speeds and Feeds, see fullertontool.com

Tolerance:
Cutting Diameter: +.015” -.015”
Hole Diameter: +.0005” -.0000”
Thickness: +.00025” -.00025”

Cutter Arbor Number EDP Number
Hole
Diameter Size Range Diameter of Teeth UC
1/4 .0100 - .0350 1/8 12 2450001
5/16 .0100 - .0350 1/8 12 2450002
.0060 - .0259 1/8 14 2450003
3/8
.0260 - .0630 1/8 14 2450004
.0060 - .0349 3/16 14 2450005
1/2
.0350 - .0630 3/16 14 2450006
.0060 - .0149 1/4 16 2450007
5/8 .0150 - .0409 1/4 16 2450008
.0410 - .0630 1/4 16 2450009
.0060 - .0149 1/4 18 2450010
.0150 - .0409 1/4 18 2450011
3/4 .0410 - .0639 1/4 18 2450012
.0640 - .0949 1/4 18 2450013
.0950 - .1300 1/4 18 2450014
.0100 - .0199 1/4 20 2450015
1 .0200 - .0409 1/4 20 2450018
.0410 - .0639 1/4 20 2450021

179
