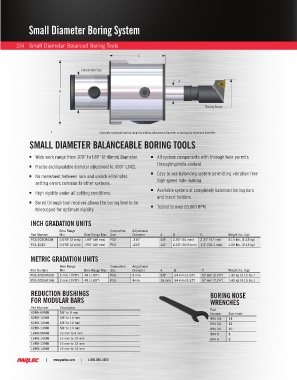

P. 226
Small Diameter Boring System
224 Small Diameter Balanced Boring Tools
C
Connection Size
A
B
*Boring Range
* Calculate maximum boring range by adding adjustment diameter to boring bar minimum diameter.
SMALL DIAMETER BALANCEABLE BORING TOOLS
Wide work range from .078” to 1.89” (2-48mm) Diameter. All system components with through hole permits
through-spindle coolant.
Precise and repeatable diameter adjustment to .0001” (.002).
Easy to use balancing system permitting vibration free
No movement between lock and unlock eliminates
setting errors common to other systems. high-speed hole making.
Available system of completely balanced boring bars
High rigidity under all cutting conditions.
and insert holders.
Bored through tool receiver allows the boring tool to be
telescoped for optimum rigidity. Tested to over 20,000 RPM.
INCH GRADATION UNITS
Bore Range Connection Adjustment
Part Number Min Bore Range Max Size Diameter A B C Weight lbs. (kg)
PC6-20SDE62B 0.078" (2 mm) 1.89" (48 mm) PC6 .315” 5/8" 2.52" (64 mm) 2.24" (57 mm) 3.15 lbs. (1.43 kg)
PC4-2015 0.078" (2 mm) .790" (20 mm) PC4 .200" 1/2" 2.00" (50.8 mm) 1.5" (38.1 mm) 1.00 lbs. (0.45 kg)
METRIC GRADATION UNITS
Bore Range Connection Adjustment
Part Number Min Bore Range Max Size Diameter A B C Weight lbs. (kg)
PC6-20SDM62B 2 mm (.078") 48 (1.89”) PC6 8 mm 5/8" 64 mm (2.52") 57 mm (2.24") 1.43 kg (3.15 lbs.)
PC6-20SDM16B 2 mm (.078") 48 (1.89”) PC6 8mm 16 mm 64 mm (2.52") 57 mm (2.24") 1.43 kg (3.15 lbs.)
REDUCTION BUSHINGS BORING NOSE
FOR MODULAR BARS WRENCHES
Part Number Description Part
62RB-08MM 5/8" to 8 mm Number Size (mm)
62RB-10MM 5/8" to 10 mm 894 14 14
62RB-12MM 5/8" to 12 mm 894 12 12
62RB-14MM 5/8" to 14 mm 894 10 10
16RB-08MM 16 mm to 8 mm 894 8 8
16RB-10MM 16 mm to 10 mm 894 6 6
16RB-12MM 16 mm to 12 mm
16RB-14MM 16 mm to 14 mm
