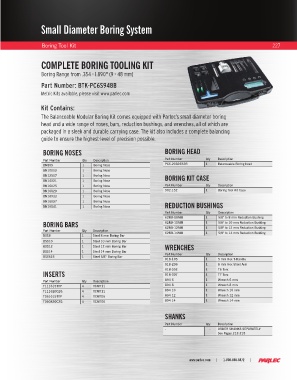

Page 229 - Parlec Catalog

Small Diameter Boring System

Boring Tool Kit 227

COMPLETE BORING TOOLING KIT

Boring Range from .354 - 1.890" (9 - 48 mm)

Part Number: BTK-PC6S948B

Metric Kits available, please visit www.parlec.com

Kit Contains:

The Balanceable Modular Boring Kit comes equipped with Parlec’s small diameter boring
head and a wide range of noses, bars, reduction bushings, and wrenches, all of which are
packaged in a sleek and durable carrying case. The kit also includes a complete balancing
guide to ensure the highest-level of precision possible.

BORING NOSES BORING HEAD

Part Number Qty Description Part Number Qty Description
BN8X9 1 Boring Nose PC6-20SDE62B 1 Balanceable Boring head
BN10X13 1 Boring Nose
BN12X17 1 Boring Nose BORING KIT CASE
BN14X21 1 Boring Nose
BN16X25 1 Boring Nose Part Number Qty Description
BN16X29 1 Boring Nose 902.152 1 Boring Tool Kit Case
BN16X33 1 Boring Nose
BN16X37 1 Boring Nose
BN16X41 1 Boring Nose REDUCTION BUSHINGS
Part Number Qty Description
62RB-08MM 1 5/8" to 8 mm Reduction Bushing
BORING BARS 62RB-10MM 1 5/8" to 10 mm Reduction Bushing
Part Number Qty Description 62RB-12MM 1 1 5/8" to 12 mm Reduction Bushing
62RB-14MM
5/8" to 14 mm Reduction Bushing
BSS8 1 Steel 8 mm Boring Bar
BSS10 1 Steel 10 mm Boring Bar
BSS12 1 Steel 12 mm Boring Bar WRENCHES
BSS14 1 Steel 14 mm Boring Bar Part Number Qty Description
BSS625 1 Steel 5/8” Boring Bar
018-105 1 5 mm Hex T-Handle
018-206 1 6 mm Hex Short Arm
018-002 1 T6 Torx
INSERTS 018-007 1 T7 Torx
Part Number Qty Description 894 6 1 Wrench 6 mm
T111615TTP 4 TCMT11 894 8 1 Wrench 8 mm
T111620C2G 4 TCMT11 894 10 1 Wrench 10 mm
T061615TTP 4 TCMT06 894 12 1 Wrench 12 mm
T060820C2G 4 TCMT06 894 14 1 Wrench 14 mm

SHANKS

Part Number Qty Description
- - ORDER SHANKS SEPARATELY
See Pages 212-215
