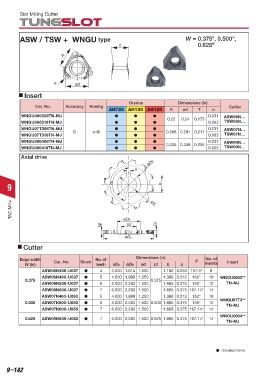

Page 728 - Tungaloy Catalog

Slot Milling Cutter

ASW / TSW + WNGU type W = 0.375", 0.500",
T 0.625"

A

rε ød

Insert

Grades Dimensions (in)
Cat. No. Accuracy Honing Cutter
AH725 AH130 AH120 A ød T rε
WNGU060308TN-MJ d d d 0.22 0.24 0.173 0.031 ASW06N…
WNGU060316TN-MJ d d d 0.063 TSW06N…
WNGU07T308TN-MJ d d d 0.031 ASW07N…
WNGU07T316TN-MJ G with with d d d 0.268 0.291 0.217 0.063 TSW07N…
WNGU090408TN-MJ d d d 0.335 0.339 0.256 0.031 ASW09N…
WNGU090416TN-MJ d d d 0.063 TSW09N…
Axial drive

9

TAC Mills

Cutter

Edge width No. of Dimensions (in) θ No. of
W (in) Cat. No. Stock teeth øDc øDb ød Lf b a inserts Insert
ASW06N300-U037 d 4 3.000 1.614 1.000 1.102 0.250 157.5° 8
ASW06N400-U037 d 5 4.000 1.890 1.250 1.386 0.312 162° 10 WNGU0603**
0.375 0.375
ASW06N500-U037 d 6 5.000 2.283 1.500 1.665 0.375 165° 12 TN-MJ
ASW06N600-U037 d 7 6.000 2.283 1.500 1.665 0.375 167.14° 14
ASW07N400-U050 d 5 4.000 1.890 1.250 1.386 0.312 162° 10
0.500 ASW07N500-U050 d 6 5.000 2.283 1.500 0.500 1.665 0.375 165° 12 WNGU07T3**
TN-MJ
ASW07N600-U050 d 7 6.000 2.283 1.500 1.665 0.375 167.14° 14
WNGU0904**
0.625 ASW09N600-U062 d 7 6.000 2.283 1.500 0.625 1.665 0.375 167.14° 14
TN-MJ

d : Stocked items

Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
9–142
