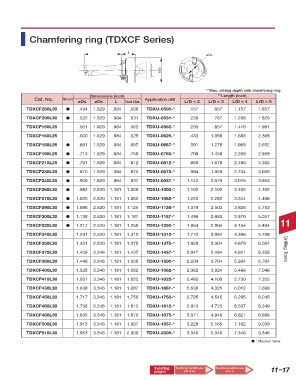

P. 833
Chamfering ring (TDXCF Series)
L
øDs
øDc
**Max. drilling depth with chamfering ring
Dimensions (inch) **Length (inch)
Cat. No. Stock Application drill
øDs øDc L Tool Dia. L/D = 2 L/D = 3 L/D = 4 L/D = 5
TDXCF280L30 d .494 1.929 .984 .500 TDXU-0500-* .157 .657 1.157 1.657
TDXCF290L30 d .522 1.929 .984 .531 TDXU-0531-* .236 .767 1.298 1.829
TDXCF150L25 .561 1.929 .984 .562 TDXU-0562-* .295 .857 1.419 1.981
TDXCF160L25 .600 1.929 .984 .625 TDXU-0625-* .433 1.058 1.683 2.308
TDXCF180L25 d .681 1.929 .984 .687 TDXU-0687-* .591 1.278 1.965 2.652
TDXCF190L25 d .713 1.929 .984 .750 TDXU-0750-* .709 1.459 2.209 2.959
TDXCF210L25 d .791 1.929 .984 .812 TDXU-0812-* .866 1.678 2.490 3.302
TDXCF230L25 d .870 1.929 .984 .875 TDXU-0875-* .984 1.859 2.734 3.609
TDXCF240L25 d .909 1.929 .984 .937 TDXU-0937-* 1.142 2.079 3.016 3.953
TDXCF260L30 d .982 2.520 1.181 1.000 TDXU-1000-* 1.102 2.102 3.102 4.102
TDXCF270L30 d 1.020 2.520 1.181 1.062 TDXU-1062-* 1.220 2.282 3.344 4.406
TDXCF290L30 d 1.098 2.520 1.181 1.125 TDXU-1125-* 1.378 2.503 3.628 4.753
TDXCF300L30 d 1.138 2.520 1.181 1.187 TDXU-1187-* 1.496 2.683 3.870 5.057
TDXCF320L30 d 1.217 2.520 1.181 1.250 TDXU-1250-* 1.654 2.904 4.154 5.404 11
TDXCF340L30 1.291 2.520 1.181 1.312 TDXU-1312-* 1.772 3.084 4.396 5.708
TDXCF350L30 1.331 2.520 1.181 1.375 TDXU-1375-* 1.929 3.304 4.679 6.054
TDXCF370L30 1.409 3.346 1.181 1.437 TDXU-1437-* 2.047 3.484 4.921 6.358 Drilling Tools
TDXCF380L30 1.449 3.346 1.181 1.500 TDXU-1500-* 2.204 3.704 5.204 6.704
TDXCF400L30 1.528 3.346 1.181 1.562 TDXU-1562-* 2.362 3.924 5.486 7.048
TDXCF410L30 1.567 3.346 1.181 1.625 TDXU-1625-* 2.480 4.105 5.730 7.355
TDXCF430L30 1.638 3.346 1.181 1.687 TDXU-1687-* 2.638 4.325 6.012 7.699
TDXCF450L30 1.717 3.346 1.181 1.750 TDXU-1750-* 2.795 4.545 6.295 8.045
TDXCF460L30 1.756 3.346 1.181 1.812 TDXU-1812-* 2.913 4.725 6.537 8.349
TDXCF480L30 1.835 3.346 1.181 1.875 TDXU-1875-* 3.071 4.946 6.821 8.696
TDXCF500L30 1.913 3.346 1.181 1.937 TDXU-1937-* 3.228 5.165 7.102 9.039
TDXCF510L30 1.953 3.346 1.181 2.000 TDXU-2000-* 3.346 5.346 7.346 9.346
● : Stocked items
Relating Cutting Conditions Technical reference 11–17
pages (11-14 ) (14-1)
