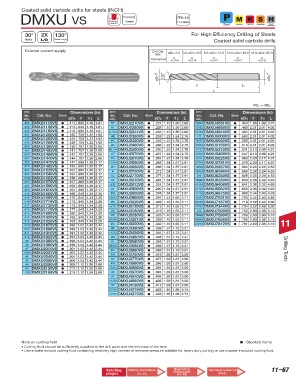

Page 883 - Tungaloy Catalog

Coated solid carbide drills for steels (INCH)
DMXU VS External Ti (C,N,O) IT9~10 Steel Stainless Cast Iron Superalloys Materials
Coated
IT class
Coolant
Hard
30° 2X 130° For High Efficiency Drilling of Steels
Helix L/D Point angle Coated solid carbide drills
External coolant supply Drill Dia.
øDc øDc≤3.0 3.0<øDc≤6.0 6.0<øDc≤10.0 10.0<øDc≤18.0 18.0<øDc≤20.0
0
0
0
0
0
Tolerances −0.014 −0.018 −0.022 −0.027 −0.033
øDc h8 130° øDs h8
R R S
L

øDc = øDs
Drill Dimensions (in) Drill Dimensions (in) Drill Dimensions (in)
dia. Cat. No. Stock dia. Cat. No. Stock dia. Cat. No. Stock
øDc øDs R R s L øDc øDs R R s L øDc øDs R R s L
#34 DMXU1110VS d .111 .630 1.18 1.81 #2 DMXU2210VS d .221 1.10 1.50 2.60 29/64 DMXU4531VS d .453 1.85 1.89 3.74
#33 DMXU1130VS d .113 .630 1.18 1.81 #1 DMXU2280VS d .228 1.10 1.50 2.60 15/32 DMXU4688VS d .469 2.01 2.01 4.02
#32 DMXU1160VS d .116 .630 1.18 1.81 #A 15/64 DMXU2344VS d .234 1.10 1.50 2.60 31/64 DMXU4844VS d .484 2.01 2.01 4.02
#31 DMXU1200VS d .120 .708 1.22 1.93 #B DMXU2380VS d .238 1.22 1.54 2.76 1/2 DMXU5000VS d .500 2.01 2.01 4.02
1/8 DMXU1250VS d .125 .708 1.22 1.93
#30 DMXU1285VS d .129 .708 1.22 1.93 #C DMXU2420VS d .242 1.22 1.54 2.76 TUBE DMXU5050VS d .505 2.01 2.01 4.02
#29 DMXU1360VS d .136 .787 1.26 2.05 #D DMXU2460VS d .246 1.22 1.54 2.76 33/64 DMXU5156VS d .516 2.01 2.01 4.02
#28 DMXU1405VS d .141 .787 1.26 2.05 #E 1/4 DMXU2500VS d .250 1.22 1.54 2.76 17/32 DMXU5312VS d .531 2.13 2.09 4.21
9/64 DMXU1406VS d .141 .787 1.26 2.05 #F DMXU2570VS d .257 1.22 1.54 2.76 35/64 DMXU5469VS d .547 2.13 2.09 4.21
#27 DMXU1440VS d .144 .787 1.26 2.05 #G DMXU2610VS d .261 1.22 1.54 2.76 9/16 DMXU5625VS d .563 2.20 2.17 4.37
#26 DMXU1470VS d .147 .886 1.30 2.17 17/64 DMXU2656VS d .266 1.34 1.57 2.91 37/64 DMXU5781VS d .578 2.20 2.17 4.37
#25 DMXU1495VS d .150 .886 1.30 2.17 #H DMXU2660VS d .266 1.34 1.57 2.91 19/32 DMXU5937VS d .594 2.28 2.24 4.53
#24 DMXU1520VS d .152 .886 1.30 2.17 #I DMXU2720VS d .272 1.34 1.57 2.91 39/64 DMXU6094VS d .609 2.28 2.24 4.53
#23 DMXU1540VS d .154 .886 1.30 2.17
5/32 DMXU1562VS d .156 .886 1.30 2.17 #J DMXU2770VS d .277 1.34 1.57 2.91 5/8 DMXU6250VS d .625 2.28 2.24 4.53
#22 DMXU1570VS d .157 .886 1.30 2.17 #K DMXU2810VS d .281 1.34 1.57 2.91 TUBE DMXU6330VS d .633 2.36 2.32 4.69
#21 DMXU1590VS d .159 .886 1.30 2.17 9/32 DMXU2812VS d .281 1.34 1.57 2.91 41/64 DMXU6406VS d .641 2.36 2.32 4.69
#20 DMXU1610VS d .161 .886 1.30 2.17 #L DMXU2900VS d .290 1.34 1.57 2.91 21/32 DMXU6562VS d .656 2.36 2.32 4.69
#19 DMXU1660VS d .166 .945 1.34 2.28 #M DMXU2950VS d .295 1.34 1.57 2.91 11/16 DMXU6875VS d .688 2.44 2.40 4.85
#18 DMXU1695VS d .170 .945 1.34 2.28 19/64 DMXU2969VS d .297 1.46 1.65 3.11 45/64 DMXU7031VS d .703 2.44 2.40 4.85
11/64 DMXU1719VS d .172 .945 1.34 2.28 #N DMXU3020VS d .302 1.46 1.65 3.11 23/32 DMXU7187VS d .719 2.52 2.48 5.00
#17 DMXU1730VS d .173 .945 1.34 2.28 5/16 DMXU3125VS d .313 1.46 1.65 3.11 47/64 DMXU7344VS d .734 2.52 2.48 5.00
#16 DMXU1770VS d .177 .945 1.34 2.28 #0 DMXU3160VS d .316 1.46 1.65 3.11 3/4 DMXU7500VS d .750 2.60 2.56 5.16
#15 DMXU1800VS d .180 .945 1.34 2.28 #P DMXU3230VS .323 1.46 1.65 3.11 TUBE DMXU7590VS .759 2.60 2.60 5.16
#14 DMXU1820VS d .182 .945 1.34 2.28 d d
#13 DMXU1850VS d .185 .945 1.34 2.28 21/64 DMXU3281VS d .328 1.46 1.65 3.11 49/64 DMXU7656VS d .766 2.60 2.56 5.16
3/16 DMXU1875VS d .188 1.02 1.42 2.44 #Q DMXU3320VS d .332 1.46 1.65 3.11 25/32 DMXU7812VS d .781 2.60 2.56 5.16 11
#12 DMXU1890VS d .189 1.02 1.42 2.44 #R DMXU3390VS d .339 1.57 1.73 3.31
#11 DMXU1910VS d .191 1.02 1.42 2.44 11/32 DMXU3438VS d .344 1.57 1.73 3.31
#10 DMXU1935VS d .194 1.02 1.42 2.44 #S DMXU3480VS d .348 1.57 1.73 3.31
#9 DMXU1960VS d .196 1.02 1.42 2.44 #T DMXU3580VS d .358 1.57 1.73 3.31
#8 DMXU1990VS d .199 1.02 1.42 2.44 23/64 DMXU3594VS d .359 1.57 1.73 3.31
#7 DMXU2010VS d .201 1.02 1.42 2.44 #U DMXU3680VS .368 1.57 1.73 3.31 Drilling Tools
13/64 DMXU2031VS d .203 1.02 1.42 2.44 3/8 DMXU3750VS d .375 1.69 1.81 3.50
#6 DMXU2040VS d .204 1.02 1.42 2.44 #V DMXU3770VS d .377 1.69 1.81 3.50
#5 DMXU2055VS d .206 1.02 1.42 2.44 d
#4 DMXU2090VS d .209 1.10 1.50 2.60 #W DMXU3860VS d .386 1.69 1.81 3.50
#3 DMXU2130VS d .213 1.10 1.50 2.60 25/64 DMXU3906VS d .391 1.69 1.81 3.50
7/32 DMXU2188VS d .219 1.10 1.50 2.60 #X DMXU3970VS d .397 1.69 1.81 3.50
#Y DMXU4040VS d .404 1.69 1.81 3.50
13/32 DMXU4062VS d .406 1.69 1.81 3.50
#Z DMXU4130VS d .413 1.69 1.81 3.50
27/64 DMXU4219VS d .422 1.85 1.89 3.74
7/16 DMXU4375VS d .438 1.85 1.89 3.74

Note on cutting fluid d : Stocked items
• Cutting fluid should be sufficiently supplied to the drill point and the entrance of the hole.
• Use a water soluble cutting fluid containing relatively high content of extreme pressure additive for heavy duty cutting or use a water-insoluble cutting fluid.

Regrinding
Relating Cutting Conditions Procedures Technical reference 11–67
pages (11-70) (11-76) (14-1)
