P. 903

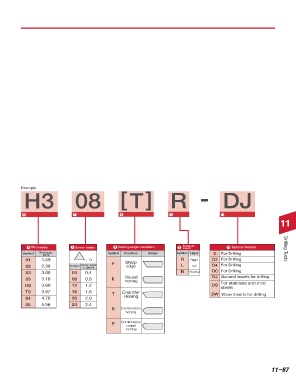

Example
H3 08 [ ] R - DJ
T
6 7 8 9 10
11
Hand of
6 Thickness 7 Corner radius 8 Cutting edge condition 9 insert 10 Special feature Drilling Tools
Symbol Thickness. Symbol Condition Shape Symbol Hand D For Drilling
(mm)
01 1.59 r ε Sharp R Right D2 For Drilling
02 2.38 Symbol Corner radius F edge L Left D4 For Drilling
r ε (mm)
X3 3.00 04 0.4 N Neutral DC For Drilling
03 3.18 08 0.8 E Round DJ General inserts for drilling
honing
H3 3.60 12 1.2 DS For stainless and mild
steels
T3 3.97 16 1.6 T Chamfer DW Wiper inserts for drilling
04 4.76 20 2.0 Honing
05 5.56 24 2.4
S Combination
honing
P Combination
round
honing
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
11–87
