Page 908 - Tungaloy Catalog

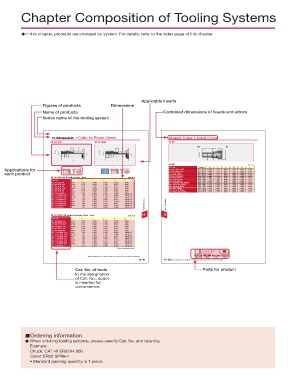

Chapter Composition of Tooling Systems

In this chapter, products are arranged by system. For details, refer to the index page of this chapter.
u

Applicable inserts
Figures of products Dimensions
Name of products Combined dimensions of heads and arbors
Series name of the tooling system

• Collet for Power Chuck Straight Shank • Collet Chuck
A SC-SPR B SC-SEAL ST-ER
1 2
L2 L1 L2 L1 L1 L
D G D
d G d D1 D
L L J T
ST-ER (Unit: in)
Cat. No. Range L1 L J D1 D T
Applications for 58-60 HRC N5 58-60 HRC N5 ST3/4x2.000 ER25F .041-.632 2.000 1.732 M12 .750 1.654 1.102
ST3/4x4.000 ER25
.041-.632
4.000
.750
1.654
1.102
1.772
M12
each product 10MPa ST1x2.00 ER25F .041-.632 2.000 1.732 M12 1.000 2.480 1.772
1.772
ST1x4.00 ER25F
2.480
1.772
1.000
4.000
.041-.632
M12
.750
A SC-SPR SC Straight Collet - Inch (Unit: inch) ST3/4x2.00 ER32F .080-.789 2.000 2.126 M12 1.000 1.968 1.417
M16
2.480
.080-.789
2.000
2.362
ST1x2.00 ER32F
1.772
Cat. No. d D L L1 L2 G ST1x2-3/4 ER32F .080-.789 2.750 2.362 M16 1.000 2.480 1.772
ST1x4.00 ER32F
2.362
4.000
.080-.789
2.480
M16
1.000
1.772
SC 3/4 SPR 1/4 0.25 0.75 2.362 1.102 0.276 M16 ST1-1/2x80(3.150) ER32F .080-.789 3.150 2.362 M16 1.000 2.480 1.772
SC 3/4 SPR 5/16 0.313 0.75 2.362 1.102 0.276 M16 ST1-1/4x2.375 ER32F .080-.789 2.375 2.087 M18 1.250 1.968 1.417
SC 3/4 SPR 3/8 0.375 0.75 2.362 1.378 0.512 M16 ST1-1/4x6.00 ER32 .080-.789 6.000 2.047 M18 1.250 1.968 1.417
SC 3/4 SPR 7/16 0.438 0.75 2.362 1.102 0.315 M16 ST1x2.37 ER40F .120-1.025 2.370 2.362 M18 1.000 2.480 1.772
SC 3/4 SPR 1/2 0.5 0.75 2.362 1.102 0.276 M16 ST1-1/4x2.37 ER40 .120-1.025 2.370 2.362 M18 1.250 2.480 1.772
SC 3/4 SPR 5/8 0.625 0.75 2.362 1.543 0.354 M16 ST1-1/2x3.150 ER40F .120-1.025 3.150 2.362 M18 1.500 2.480 1.772
SC 1-1/4 SPR 1/4 0.25 1.25 2.835 1.102 0.689 M24x1.5
SC 1-1/4 SPR 5/16 0.313 1.25 2.835 1.102 0.689 M24x1.5
SC 1-1/4 SPR 3/8 0.375 1.25 2.835 1.378 0.413 M24x1.5
SC 1-1/4 SPR 1/2 0.5 1.25 2.835 1.575 0.217 M24x1.5
SC 1-1/4 SPR 5/8 0.625 1.25 2.835 1.732 0.709 M24x1.5
SC 1-1/4 SPR 3/4 0.75 1.25 2.835 1.811 0.63 M24x1.5 Tooling Systems Tooling Systems
SC 1-1/4 SPR 7/8 0.875 1.25 2.835 1.969 0.453 M24X1.5
SC 1-1/4 SPR 1 1 1.25 2.835 2.008 0.409 M24x1.5
B SC-SEAL SC Sealed Straight Collet - Inch (Unit: inch) 12 12
Cat. No. d D L L1 L2 G
SC 3/4 SEAL 1/4 0.25 0.75 2.362 1.102 0.276 M16
SC 3/4 SEAL 5/16 0.313 0.75 2.362 1.102 0.276 M16
SC 3/4 SEAL 3/8 0.375 0.75 2.362 1.378 0.512 M16
SC 3/4 SEAL 7/16 0.438 0.75 2.362 1.575 0.315 M16
SC 3/4 SEAL 1/2 0.5 0.75 2.362 1.575 0.315 M16
SC 3/4 SEAL 5/8 0.625 0.75 2.362 1.543 0.354 M16
SC 1-1/4 SEAL 1/4 0.25 1.25 2.835 1.102 0.689 M24X1.5
SC 1-1/4 SEAL 5/16 0.313 1.25 2.835 1.102 0.689 M24X1.5
SC 1-1/4 SEAL 3/8 0.375 1.25 2.835 1.378 0.413 M24X1.5
SC 1-1/4 SEAL 1/2 0.5 1.25 2.835 1.575 0.217 M24X1.5
SC 1-1/4 SEAL 5/8 0.625 1.25 2.835 1.732 0.709 M24X1.5
SC 1-1/4 SEAL 3/4 0.75 1.25 2.835 1.811 0.63 M24X1.5
SC 1-1/4 SEAL 7/8 0.875 1.25 2.835 1.969 0.453 M24X1.5
SC 1-1/4 SEAL 1 1 1.25 2.835 2.008 0.453 M24X1.5
Note: Size table is inch.
ER Collet Nut Wrench Preset Screw
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
12-34 ~ 12-39 12-48 12-49 12-50
12–41 12–28 Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
Cat. No. of tools Parts for product
In the designation
of Cat. No., space
is inserted for
convenience.
nOrdering information
d When ordering tooling systems, please specify Cat. No. and quantity.
Example:
Chuck: CAT 40 ER32X4.000
Collet: ER32 SPR6-7 .
• Standard packing quantity is 1 piece.
