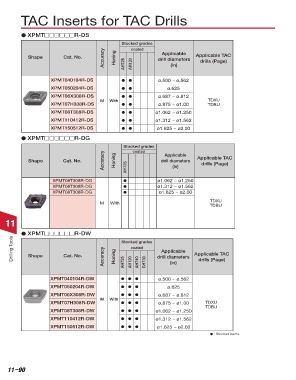

Page 906 - Tungaloy Catalog

TAC Inserts for TAC Drills

d XPMTuuuuuuR-DS
Stocked grades
coated
Accuracy Honing AH725 AH120 drill diameters drills (Page)
Shape Cat. No. Applicable Applicable TAC
(in)

XPMT040104R-DS d d ø.500 ~ ø.562
XPMT050204R-DS d d ø.625

XPMT06X308R-DS d d ø.687 ~ ø.812
M With TDXU
XPMT07H308R-DS d d ø.875 ~ ø1.00 TDBU
XPMT08T308R-DS d d ø1.062 ~ ø1.250
XPMT110412R-DS d d ø1.312 ~ ø1.562
XPMT150512R-DS d d ø1.625 ~ ø2.00
d XPMTuuuuuuR-DG

Stocked grades
coated
Accuracy Honing AH725 (in) drills (Page)
Applicable
Shape Cat. No. drill diameters Applicable TAC

XPMT08T308R-DG d ø1.062 ~ ø1.250
XPMT08T308R-DG d ø1.312 ~ ø1.562
XPMT08T308R-DG d ø1.625 ~ ø2.00
TDXU
M With
TDBU

11

d XPMTuuuuuuR-DW
Drilling Tools Shape Cat. No. Accuracy Honing Stocked grades drill diameters Applicable TAC

coated
Applicable
AH120
AH740
GH730
AH725
drills (Page)
(in)
XPMT040104R-DW d d d ø.500 ~ ø.562
XPMT050204R-DW d d d ø.625
XPMT06X308R-DW d d d ø.687 ~ ø.812
M With
XPMT07H308R-DW d d d ø.875 ~ ø1.00 TDXU
TDBU
XPMT08T308R-DW d d d ø1.062 ~ ø1.250
XPMT110412R-DW d d d ø1.312 ~ ø1.562
XPMT150512R-DW d d d ø1.625 ~ ø2.00
d : Stocked items.

11–90
