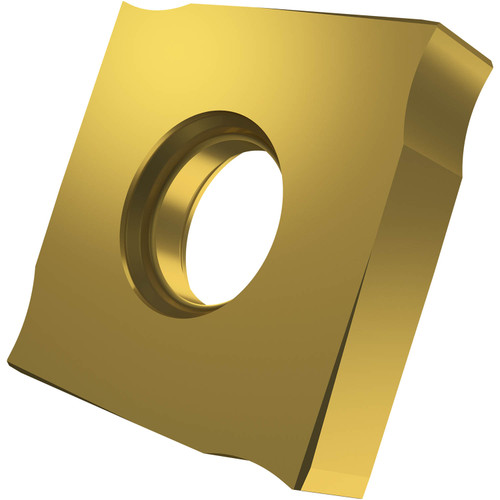

Double-sided disc milling insert, for a cutting width of 12.0 mm with cutting edges with facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with disc mills S90SN.
Product Specifications
| EDP Number | 6803595 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5 mm |
| Fixing Hole Diameter (Inch) | 0.197" |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Width (mm) | 7 mm |
| Insert Width (Inch) | 0.276" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
