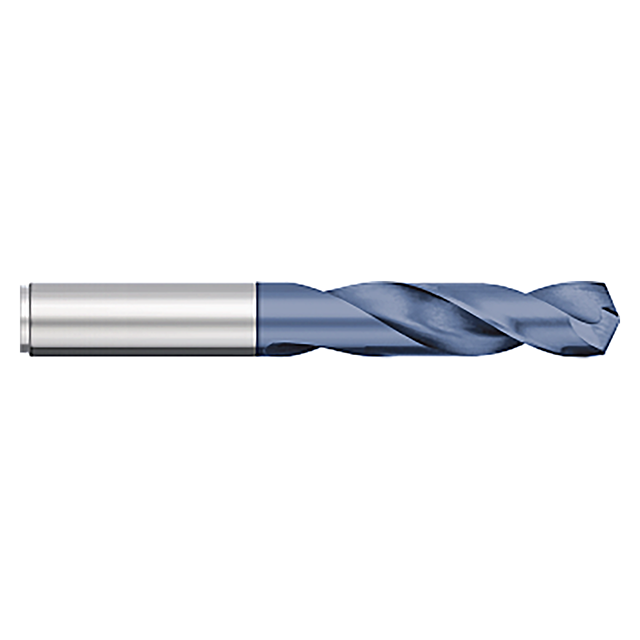

Engineered with stub length for increased rigidity, this Titan USA selection of M42 cobalt drills features tools that are optimized for drilling stainless steels, nickel-based alloys, and titanium alloys.
Features:
- Stub length for increased rigidity
- Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
- 135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
- AlTiN coating offers increased wear and heat resistance
- M-42 cobalt (identification ring on shank)
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | CD60220 |
| Drill Diameter (Inch) | 0.3125" (5/16) |
| Flute Length (Inch) | 1.6250" (1-5/8) |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 2.8125" (2-13/16) |
| Point Angle (Degree) | 135 Degree |
| Number of Flutes | 2 |
| Substrate | Cobalt |
| Coating | Gold Oxide |
| Product Type | Screw Machine Length Drill Bit |
