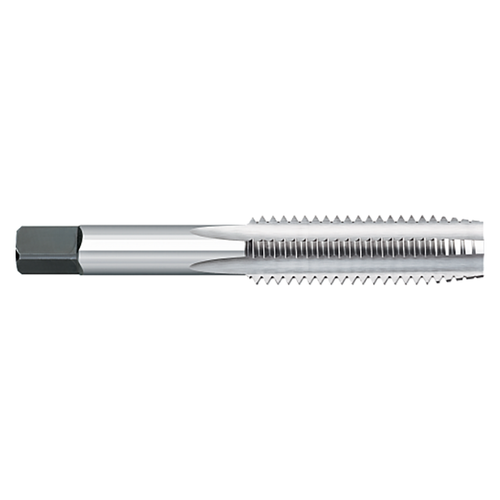

These Titan USA general purpose N.P.T.F. dryseal pipe taps are CNC ground in the USA from high speed steel onto blanks that meet ANSI specifications.
Features:
- Oversized to produce threads that accept coil wire screw thread inserts of the same size and pitch
- Taps are on blanks that meet ANSI specifications
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT78324 |
| Across Flat (Inch) | 0.2380" |
| Length of Cut (Inch) | 1.1250" (1-1/8) |
| End Length (Inch) | 0.3750" (3/8) |
| Shank Diameter (Inch) | 0.3810" |
| Overall Length (Inch) | 2.7188" |
| Thread Size (Inch) | 5/16"-24 |
| Limit | H2 |
| Type | Plug |
| Number of Flutes | 4 |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Hand STI Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
