Product Specifications
| Diameter (Decimal Inch) | T7426167H1 |
| Diameter (Decimal Inch) | 0.1463" |
| Diameter (mm) | 3.72mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Thread Length (Decimal Inch) | 0.6900" |
| Thread Length (mm) | 17.53" |
| Square Length (Decimal Inch) | 0.6900" |
| Square Length (mm) | 17.53" |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Drill Size (Decimal Inch) | 0.1181" |
| Drill Size (mm) | 3.00mm |
| Useable Length (Decimal Inch) | 0.6900" |
| Useable Length (mm) | 17.53mm |
| Length/Diameter | 2.0xD |
| Coolant Through | No |
| Tap Type | STFL |
| Number Of Flutes | 3 |
| Size | #4 |
| Pitch | 40 TPI |
| Thread Series | UNC |
| Pitch Limit | H1 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 322 |

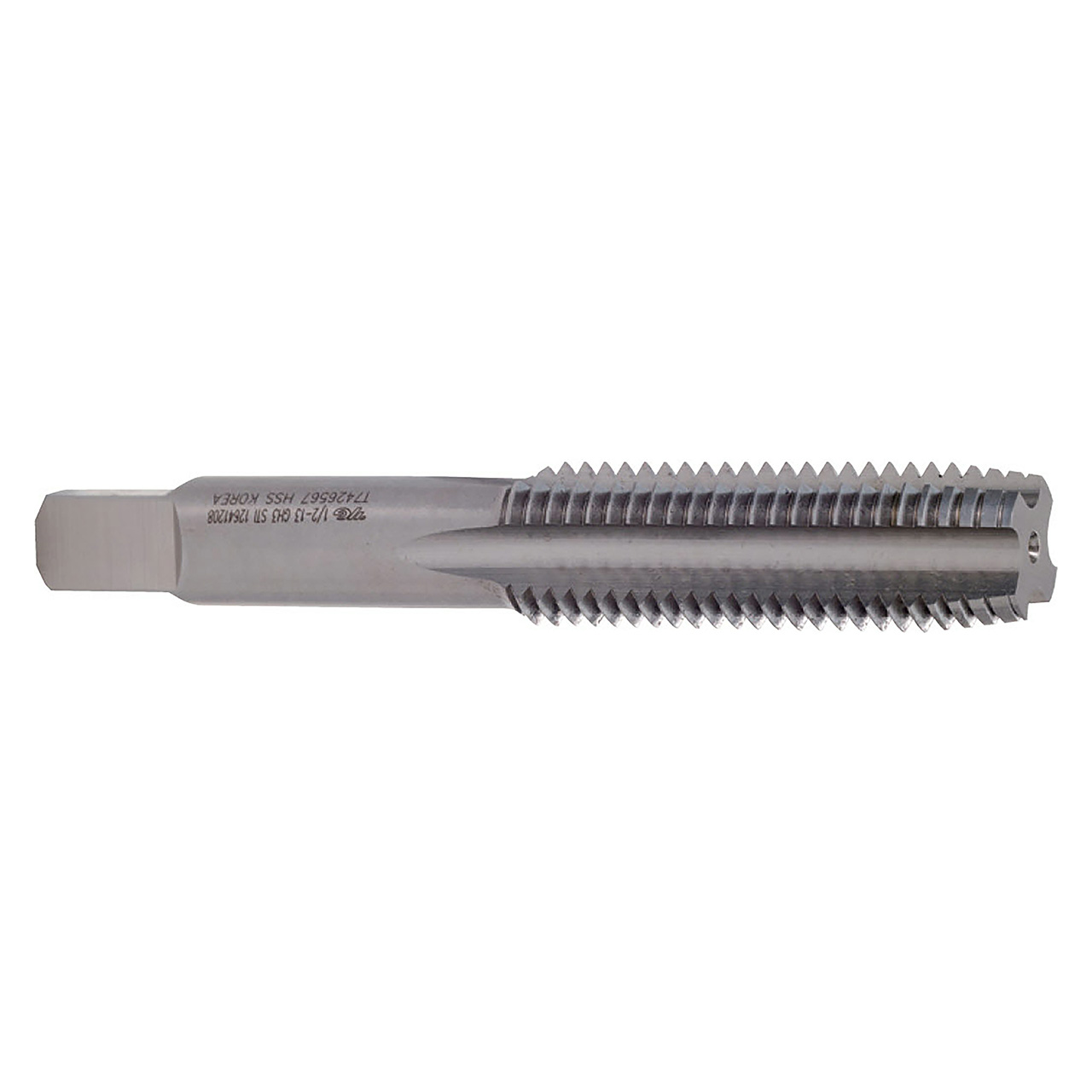

| Product Type | Spiral Flute Tap |
