Slotted-Heel Gooseneck Clamp Straps
Gooseneck version of Slotted-Heel Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

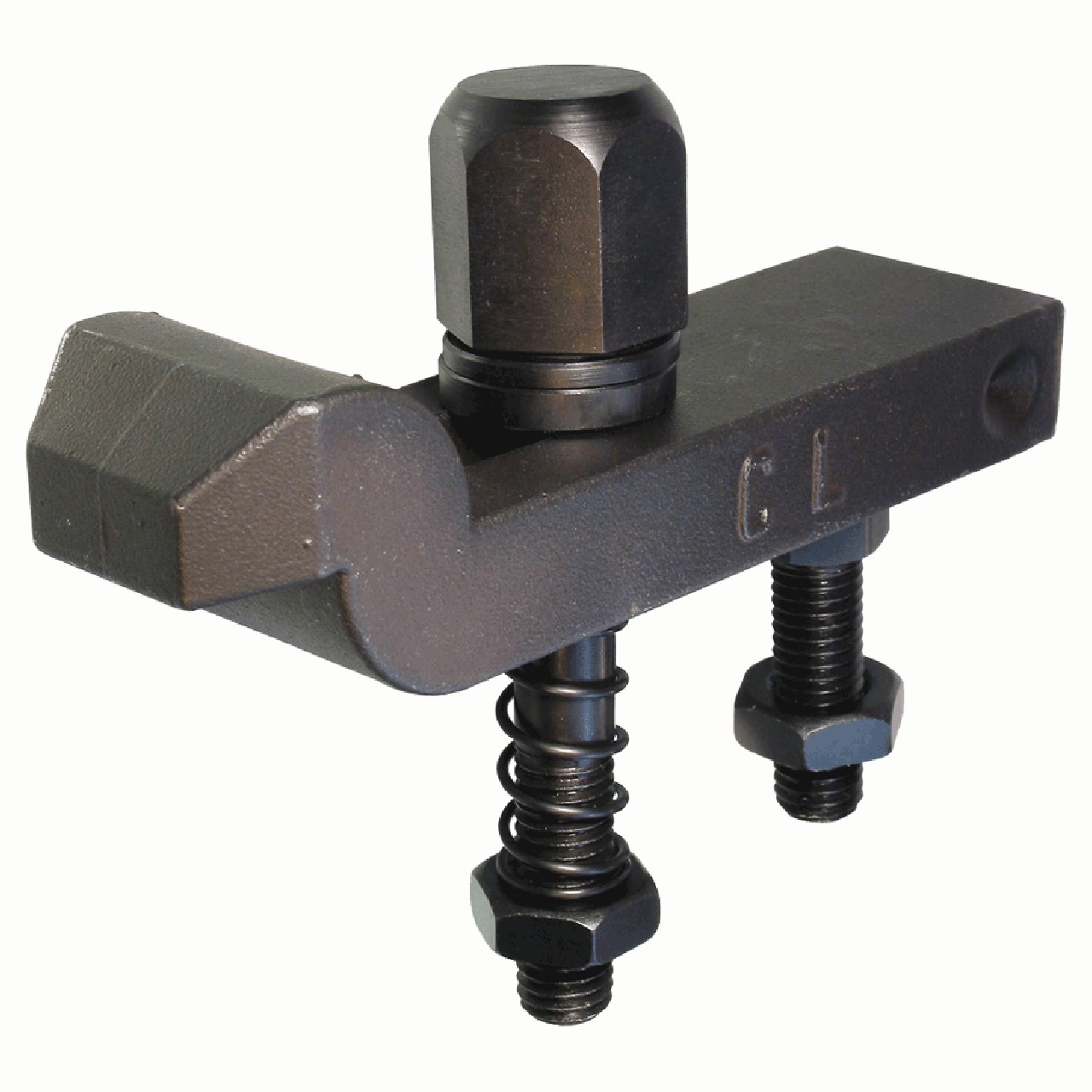

Assembly with Acorn Nut & Spherical Washer (-5)
This clamp assembly includes a Slotted-Heel Gooseneck Clamp Strap plus the following Items:
- Acorn Nut
- Spherical Washer
- Flange Nut
- Clamping Stud
- Clamp Spring
- Flat Washer
- Jam Nut
- Clamp Rest
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D (Inch) | S (Inch) |
| 1/2-13" | 0.79" | 1.57" | 5.91" | 2.75" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
