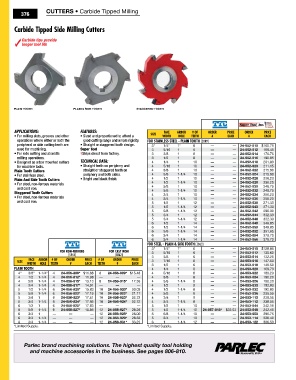

Page 378 - All Industrial Tool Supply | General Catalog

CUTTERS • Carbide Tipped Milling
376

Carbide Tipped Side Milling Cutters

Carbide tips provide
longer tool life

plain tooth plain & side tooth staggered tooth

APPLICATIONS: FeATureS: FaCe arbor # oF order PrICe order PrICe
• For milling slots, grooves and other • Sized and proportioned to afford a SIze WIdTh hole TeeTh # eaCh # eaCh
operations where either or both the good cutting range and ample rigidity. For STaINleSS STeel - PlaIN TooTh [5849]
peripheral or side cutting teeth are • Straight or staggered tooth design. 3" 1/4" 1" 8 — — 24-052-010 $160.75
used for machining. Super Tool 3 5/16 1 8 — — 24-052-012 168.45
• For side cutting and straddle †Ships direct from factory. 3 3/8 1 8 — — 24-052-014 170.75
milling operations. 3 1/2 1 8 — — 24-052-016 190.85
• Designed as arbor mounted cutters TeChNICAL DATA: 4 1/4 1 10 — — 24-052-018 201.00
for machine tools. • Straight teeth on periphery and 4 5/16 1 10 — — 24-052-020 211.15
Plain Tooth Cutters straight or staggered teeth on 4 3/8 1 10 — — 24-052-022 215.90
• For stainless steel. periphery and both sides. 4 3/8 1-1/4 10 — — 24-052-024 215.90
Plain And Side Tooth Cutters • Bright and black finish. 4 1/2 1 10 — — 24-052-026 236.20
• For steel, non-ferrous materials 4 1/2 1-1/4 10 — — 24-052-028 236.20
and cast iron. 4 5/8 1 10 — — 24-052-030 248.75
Staggered Tooth Cutters 4 4 5/8 1-1/4 10 — — 24-052-032 248.75
24-052-034
—
—
3/4
10
256.20
1
• For steel, non-ferrous materials 4 3/4 1-1/4 10 — — 24-052-036 256.20
and cast iron. 5 1/2 1 12 — — 24-052-038 271.30
5 1/2 1-1/4 12 — — 24-052-040 271.30
5 5/8 1-1/4 12 — — 24-052-042 296.30
5 3/4 1 12 — — 24-052-044 332.30
5 3/4 1-1/4 12 — — 24-052-046 332.30
6 1/2 1 14 — — 24-052-048 349.05
6 1/2 1-1/4 14 — — 24-052-050 349.05
6 5/8 1-1/4 14 — — 24-052-052 351.85
6 3/4 1 14 — — 24-052-054 379.70

6 3/4 1-1/4 14 — — 24-052-056 379.70

For STeel - PlaIN & SIde TooTh [5863]

3" 1/4" 1" 6 — — 24-053-010 $128.85
For NoN-FerrouS For CaST IroN
[5861] [5862] 3 3/8 1 6 — — 24-053-014 132.25
3 5/16 1 6 — — 24-053-012 130.60
FaCe arbor # oF order PrICe # oF order PrICe
SIze 3 7/16 1 6 — — 24-053-016 147.50
WIdTh hole TeeTh # eaCh TeeTh # eaCh 3 1/2 1 6 — — 24-053-018 149.50
PlaIN TooTh 4 1/4 1 8 — — 24-053-020 169.70
4" 3/8" 1-1/4" 4 24-056-809* $11.88 8 24-056-909* $15.48 4 5/16 1 8 — — 24-053-022 180.20
4 1/2 1-1/4 4 24-056-812* 11.88 — — — 4 3/8 1 8 — — 24-053-024 180.20
4 5/8 1-1/4 4 24-056-815* 13.13 8 24-056-915* 17.38 4 3/8 1-1/4 8 — — 24-053-026 180.20
4 3/4 1-1/4 4 24-056-817* 14.91 — — — 4 1/2 1 8 — — 24-053-030 192.00
5 1/2 1-1/4 6 24-056-820* 15.83 10 24-056-920* 20.03 4 1/2 1-1/4 8 — — 24-053-032 192.00
5 5/8 1-1/4 6 24-056-822* 17.19 10 24-056-922* 21.17 4 5/8 1 8 — — 24-053-036 235.55
5 3/4 1 6 24-056-823* 17.61 10 24-056-923* 22.72 4 3/4 1 8 — — 24-053-110 238.55
5 3/4 1-1/4 6 24-056-824* 17.95 10 24-056-924* 22.72 4 3/4 1-1/4 8 — — 24-053-112 238.55
6 1/2 1 6 24-056-825* 17.63 — — — 5 1/2 1 10 — — 24-053-044 242.15
6 5/8 1-1/4 6 24-056-827* 18.98 12 24-056-927* 26.29 5 1/2 1-1/4 10 24-057-018* $22.03 24-053-046 242.15
6 3/4 1 — — — 12 24-056-928* 28.00 5 5/8 1-1/4 10 — — 24-053-050 296.75
6 3/4 1-1/4 — — — 12 24-056-929* 28.33 5 3/4 1 10 — — 24-053-114 328.40
8 3/4 1-1/4 — — — 12 24-056-931* 33.23 6 1 1-1/4 12 — — 24-053-122 386.50
*Limited Supply. *Limited Supply.
Parlec brand machining solutions. The highest quality tool holding
and machine accessories in the business. See pages 806-810.
