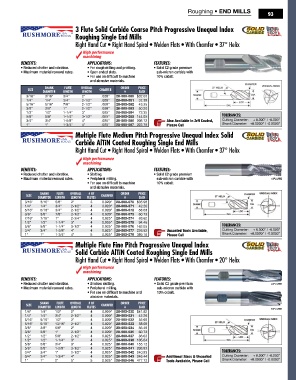

Page 95 - All Industrial Tool Supply | General Catalog

Roughing • END MILLS
93

3 Flute Solid Carbide Coarse Pitch Progressive Unequal Index
Roughing Single End Mills
Right Hand Cut • Right Hand Spiral • Weldon Flats • With Chamfer • 37° Helix

High performance
machining
Benefits: APPLiCAtiOns: feAtures:
• Reduced chatter and vibration. • For rough milling and profiling. • Solid C2 grade premium
• Maximum material removal rates. • Open ended slots. sub-micron carbide with
• For use on difficult to machine 10% cobalt.
and abrasive materials.
Shank FlUTE ovERall oRDER PRICE
SIzE ChaMFER
DIaMETER lEngTh lEngTh # EaCh
3/16" 3/16" 3/4" 2" .020" 28-000-080 $32.00
1/4" 1/4" 3/4" 2-1/2" .020" 28-000-081 37.38
5/16" 5/16" 7/8" 2-1/2" .020" 28-000-082 43.35
3/8" 3/8" 1" 2-1/2" .020" 28-000-083 50.20
1/2" 1/2" 1-1/4" 3" .025" 28-000-084 73.35
5/8" 5/8" 1-1/4" 3-1/2" .025" 28-000-085 144.05 TolERanCES:
3/4" 3/4" 1-5/8" 4" .025" 28-000-086 203.72 Also Available In ZrN Coated, Cutting Diameter: + 0.000" / -0.003"
1" 1" 1-3/4" 4" .025" 28-000-087 323.79 Please Call Shank Diameter: +0.0000" / -0.0003"
Multiple Flute Medium Pitch Progressive Unequal Index Solid
Carbide alTin Coated Roughing Single End Mills
Right Hand Cut • Right Hand Spiral • Weldon Flats • With Chamfer • 37° Helix
High performance
machining
Benefits: APPLiCAtiOns: feAtures:
• Reduced chatter and vibration. • Slotting. • Solid C2 grade premium
• Maximum material removal rates. • Peripheral milling. sub-micron carbide with 4 FLutE
• For use on difficult to machine 10% cobalt.
and abrasive materials.
Shank FlUTE ovERall # oF oRDER PRICE
SIzE ChaMFER
DIaMETER lEngTh lEngTh FlUTES # EaCh
3/16" 3/16" 5/8" 2" 3 0.020" 28-000-070 $35.98
1/4" 1/4" 3/4" 2-1/2" 4 0.020" 28-000-071 42.26
5/16" 5/16" 3/4" 2-1/2" 4 0.020" 28-000-072 58.08
3/8" 3/8" 7/8" 2-1/2" 4 0.020" 28-000-073 60.73
7/16" 7/16" 1" 2-3/4" 4 0.025" 28-000-074 83.62
1/2" 1/2" 1-1/4" 3" 4 0.025" 28-000-075 94.45
5/8" 5/8" 1-1/4" 3-1/2" 4 0.025" 28-000-076 163.05 TolERanCES:
3/4" 3/4" 1-5/8" 4" 4 0.025" 28-000-077 226.52 Uncoated Tools Available, Cutting Diameter: + 0.000" / -0.003"
1" 1" 1-3/4" 4" 5 0.025" 28-000-078 389.16 Please Call Shank Diameter: +0.0000" / -0.0003"
Multiple Flute Fine Pitch Progressive Unequal Index
Solid Carbide alTin Coated Roughing Single End Mills
Right Hand Cut • Right Hand Spiral • Weldon Flats • With Chamfer • 20° Helix
High performance
machining
Benefits: APPLiCAtiOns: feAtures:
• Reduced chatter and vibration. • Shallow slotting. • Solid C2 grade premium 4 FLutE
• Maximum material removal rates. • Peripheral milling. sub-micron carbide with
• For use on difficult to machine and 10% cobalt.
abrasive materials.
Shank FlUTE ovERall # oF oRDER PRICE
SIzE ChaMFER
DIaMETER lEngTh lEngTh FlUTES # EaCh 5 FLutE
1/4" 1/4" 1/2" 2" 4 0.020" 28-000-030 $41.92
1/4" 1/4" 3/4" 2-1/2" 4 0.020" 28-000-031 42.26
5/16" 5/16" 1/2" 2" 4 0.020" 28-000-032 55.66
5/16" 5/16" 13/16" 2-1/2" 4 0.020" 28-000-033 58.08
3/8" 3/8" 5/8" 2" 4 0.020" 28-000-034 56.49
3/8" 3/8" 1" 2-1/2" 4 0.020" 28-000-035 60.73
1/2" 1/2" 5/8" 2-1/2" 4 0.025" 28-000-037 86.63
1/2" 1/2" 1-1/4" 3" 4 0.025" 28-000-038 105.04
5/8" 5/8" 3/4" 3" 4 0.025" 28-000-040 155.12
5/8" 5/8" 1-5/8" 3-1/2" 4 0.025" 28-000-041 203.93
3/4" 3/4" 1" 3-1/2" 4 0.025" 28-000-042 240.83 TolERanCES:
3/4" 3/4" 1-3/4" 4" 4 0.025" 28-000-043 246.44 Additional Sizes & Uncoated Cutting Diameter: + 0.000" / -0.003"
1" 1" 2" 5" 5 0.025" 28-000-046 477.72 Tools Available, Please Call Shank Diameter: +0.0000" / -0.0003"
