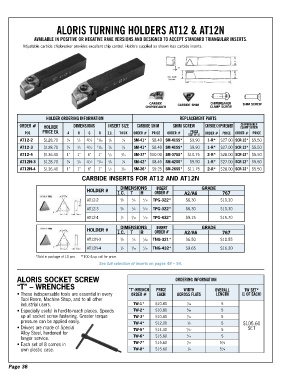

ALORIS TURNING HOLDERS AT12 & AT12N

AVAILABLE IN POSITIVE OR NEGATIVE RAKE VERSIONS AND DESIGNED TO ACCEPT STANDARD TRIANGULAR INSERTS.
Adjustable carbide chipbreaker provides excellent chip control. Holders supplied as shown less carbide inserts.

CARBIDE CARBIDE SHIM CHIPBREAKER SHIM SCREW
CHIPBREAKER CLAMP SCREW
HOLDER ORDERING INFORMATION REPLACEMENT PARTS
CHIPBREAKER
ORDER # HOLDER DIMENSIONS INSERT SIZE CARBIDE SHIM SHIM SCREW CARBIDE CHIPBREAKER CLAMP SCREW
POS. PRICE EA. A B C D I.C. THICK ORDER # PRICE ORDER # PRICE ORDER # PRICE ORDER # PRICE
(SET OF 5)
1
AT12-2 $128.70 3 /4 1 /2 4 /2 13 /16 3 /8 1 /8 SM-41* $8.40 SM-41SS* $9.90 1-R* $27.00 SCR-12* $5.50
AT12-3 $128.70 3 /4 3 /4 4 /2 13 /16 3 /8 1 /8 SM-41* $8.40 SM-41SS* $9.90 1-R* $27.00 SCR-12* $5.50
1
AT12-4 $136.40 1" 1" 6" 1" 1 /2 3 /16 SM-37* $10.00 SM-37SS* $10.75 2-R* $28.00 SCR-12* $5.50
AT12N-3 $128.70 3 /4 3 /4 4 /2 13 /16 3 /8 1 /8 SM-42* $8.40 SM-42SS* $9.90 1-R* $27.00 SCR-12* $5.50
1
AT12N-4 $136.40 1" 1" 6" 1" 1 /2 3 /16 SM-26* $9.25 SM-26SS* $11.75 2-R* $28.00 SCR-12* $5.50
CARBIDE INSERTS FOR AT12 AND AT12N
DIMENSIONS INSERT GRADE
HOLDER #
I.C. T R ORDER # A2/A6 767
AT12-2 3 /8 1 /8 1 /32 TPG-322* $6.30 $10.30
AT12-3 3 /8 1 /8 1 /32 TPG-322* $6.30 $10.30
AT12-4 1 /2 3 /16 1 /32 TPG-432* $9.15 $15.70

DIMENSIONS INSERT GRADE
HOLDER #
I.C. T R ORDER # A2/A6 767
AT12N-3 3 /8 1 /8 1 /64 TNG-321* $6.50 $10.55
AT12N-4 1 /2 3 /16 1 /32 TNG-432* $9.65 $16.20
Sold in package of 10 pcs. 100 & up call for price.

See full selection of inserts on pages 49 – 54.

ALORIS SOCKET SCREW ORDERING INFORMATION
“T” – WRENCHES
“T”-WRENCH PRICE WIDTH OVERALL TW SET*
• These indispensable tools are essential in every ORDER # EACH ACROSS FLATS LENGTH (1 OF EACH)
Tool Room, Machine Shop, and to all other
industrial users. TW-1* $10.80 1 /16 5
• Especially useful in hard-to-reach places. Speeds TW-2* $10.80 5 /64 5
up all socket screw fastening. Greater torque TW-3* $10.80 3 /32 5
pressure can be applied easily. TW-4* $12.00 1 /8 5 $105.60
• Drivers are made of Special TW-5* $14.40 5 5 SET
Alloy Steel, hardened for 3 /32
longer service. TW-6* $15.60 /16 5
1
• Each set of 8 comes in TW-7* $15.60 7 /32 5 /4
1
own plastic case. TW-8* $15.60 1 /4 5 /4
