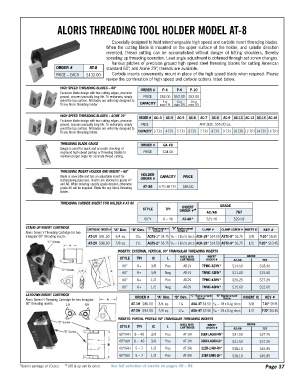

Page 39 - Aloris Catalog

ALORIS THREADING TOOL HOLDER MODEL AT-8

Especially designed to hold interchangeable high speed and carbide insert threading blades.
When the cutting blade is mounted on the upper surface of the holder, and spindle direction
reversed, thread cutting can be accomplished without danger of hitting shoulders, thereby
speeding up threading operation. Lead angle adjustment is obtained through set screw changes.
Various pitches of precision ground high speed steel threading blades for cutting American
ORDER # AT-8 standard 60°, and Acme 29°, threads are available.
PRICE – EACH $132.00 Carbide inserts conveniently mount in place of the high speed blade when required. Please
review the combination of high speed and carbide options listed below.

HIGH SPEED THREADING BLADES – 60°
ORDER # P-4 P-6 P-10
Exclusive blade design with two cutting edges, precision
ground, assures unusually long life. To resharpen, simply PRICE $52.00 $52.00 $52.00
grind the top surface. All blades are uniformly designed to 4 or 6 or 10 or
fit any Aloris threading holder. CAPACITY more T.P.I more T.P.I more T.P.I
HIGH SPEED THREADING BLADES – ACME 29°
ORDER # AC-3 AC-4 AC-5 AC-6 AC-7 AC-8 AC-9 AC-10 AC-12 AC-14 AC-16
Exclusive blade design with two cutting edges, precision
ground, assures unusually long life. To resharpen, simply PRICE ANY SIZE: $55.00 ea.
grind the top surface. All blades are uniformly designed to
fit any Aloris threading holder. CAPACITY 3 T.P.I 4 T.P.I 5 T.P.I 6 T.P.I 7 T.P.I 8 T.P.I 9 T.P.I 10 T.P.I 12 T.P.I 14 T.P.I 16 T.P.I
THREADING BLADE GAUGE ORDER # GA #8
Gauge is used for quick and accurate checking of
re-ground high speed parting or threading blades to PRICE $24.00
maintain proper angle for accurate thread cutting.

THREADING INSERT HOLDER AND INSERT – 60°
HOLDER
Blade is reversible and has an adjustable insert for CAPACITY PRICE
resharpening purposes. Inserts are stocked in grade A2 ORDER #
and A6. When ordering specify grade desired, otherwise
grade A6 will be supplied. Blade fits any Aloris threading AT-86 6 TO 48 T.P.I. $86.00
holder.

THREADING CARBIDE INSERT FOR HOLDER # AT-86
INSERT GRADE
STYLE TPI
ORDER #
A2/A6 767
60°V 6 – 48 AT-4R* $25.40 $29.59
STAND UP INSERT CARTRIDGE “C” Replacement “D” Replacement
CARTRIDGE ORDER # “A” Dim. “B” Dim. CLAMP # CLAMP SCREW # INSERT IC KEY #
Aloris Series V Threading Cartridge for two Screw # Screw #
5
5
triangular 60° threading inserts AT-1V $91.00 3/4 sq. 1/ 16 AGTS-1* $4.75 / 16 – 18x / 4 shcs ACK-19* $14.50 ASTC-9* $6.75 3/8 T-10* $9.35
3
“C” Screw
5
AT-2V $98.00 7/8 sq. 1/8 AGTS-2* $5.75 / 16 – 18x / 4 shcs ACK-19* $14.50 ASTC-9* $6.75 1/2 T-20* $10.45
3
5
INSERTS: EXTERNAL VERTICAL 60° TRIANGULAR THREADING INSERTS
USED WITH
INSERT
STYLE TPI IC L CARTRIDGE ORDER # A2/A6 GRADE 767
60° 8+ 3/8 Pos AT-1V TPMC-32NV* $14.50 $18.90
“D” Screw
60° 8+ 3/8 Neg AT-1V TNMC-32NV* $11.00 $15.50
60° 6+ 1/2 Pos AT-2V TPMC-43NV* $20.25 $27.25
60° 6+ 1/2 Neg AT-2V TNMC-43NV* $15.60 $22.60
LAYDOWN INSERT CARTRIDGE “C” Replacement “D” Replacement
ORDER # “A” Dim. “B” Dim. Screw Screw INSERT IC KEY #
Aloris Series H Threading Cartridge for two triangular
60° threading inserts LH RH AT-1H $86.00 3/4 sq. 1/ 4 ASA-3T $3.50 / 16 – 18x / 4 lg shcs 3/8 T-10* $9.35
3
1
5
AT-2H $93.00 7/8 sq. 1/16 ASA-4T $3.90 / 16 – 18x / 4 lg shcs 1/2 T-20* $10.45
5
7
3
INSERTS: PARTIAL PROFILE 60° TRIANGULAR THREADING INSERTS
“C” Screw
USED WITH INSERT GRADE
STYLE TPI IC L CARTRIDGE ORDER # A2/A6 767
“D” Screw
60°V-RH 8 – 48 3/8 Pos AT-1H 16ER-LAG60-RH* $31.50 $37.25
60°V-LH 8 – 48 3/8 Pos AT-1H 16ER-LAG60-LH* $31.50 $37.25
60°V-RH 5 – 7 1/2 Pos AT-2H 22ER-LN60-RH* $38.10 $45.85
60°V-LH 5 – 7 1/2 Pos AT-2H 22ER-LN60-LH* $38.10 $45.85

Sold in package of 10 pcs. 100 & up call for price. See full selection of inserts on pages 49 – 54. Page 37
